COOLING SYSTEM
5 - 7
ATLANTIC 125 - 200

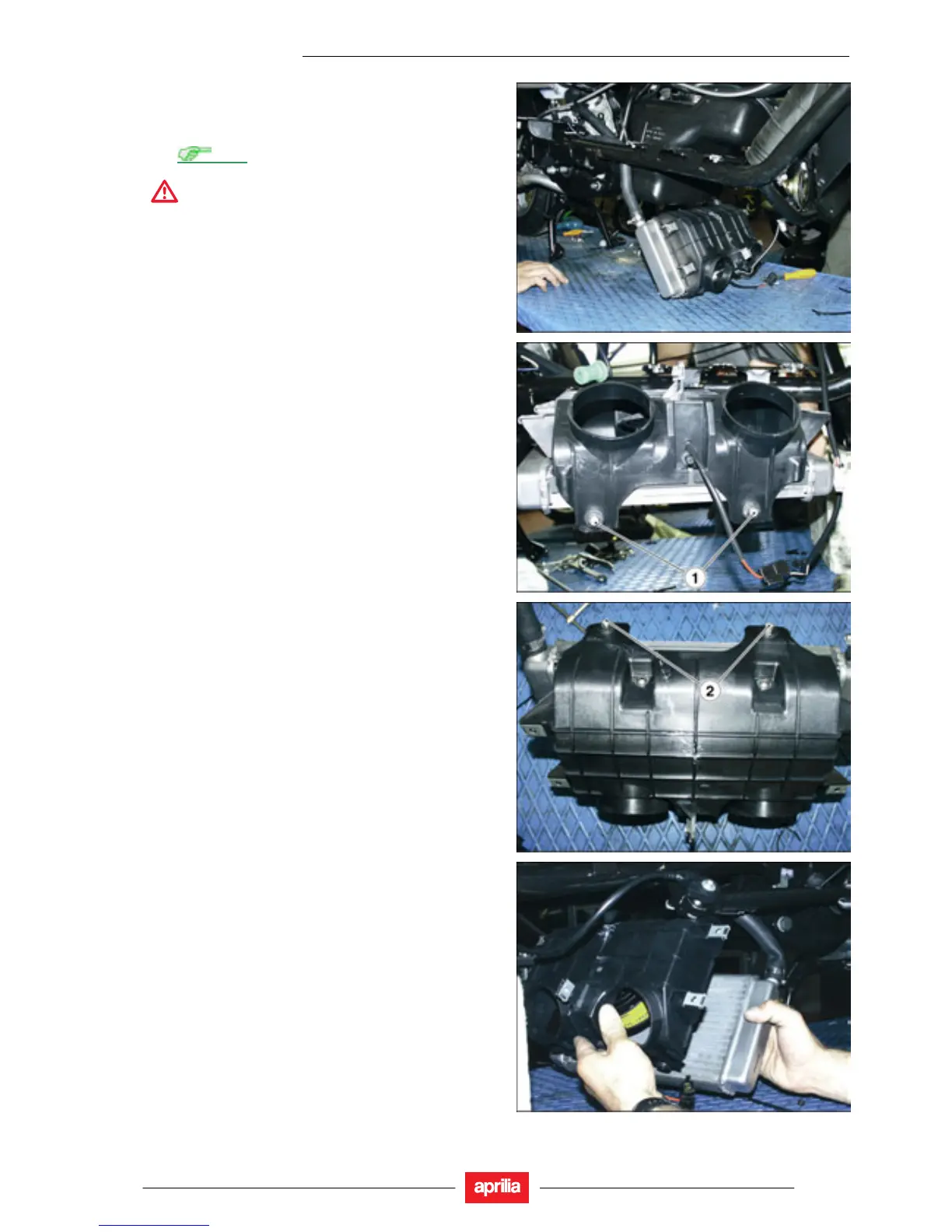

5.3.2. REMOVING THE ELECTRIC FAN
• Lower the radiator, but leave it connected to hoses,
5.3.1.
WARNING
Proceed with extreme care not to damage radiator
fins.
• Undo and remove the two nuts (1) on the front side.
Keep the screws.
• Undo and remove the two nuts (2) on the rear side.
Keep the screws.
• Remove the conveyor box.
