APRILIA ATLANTIC 500 sprint User Manual

CHASSIS
7 - 11
ATLANTIC 125 - 200

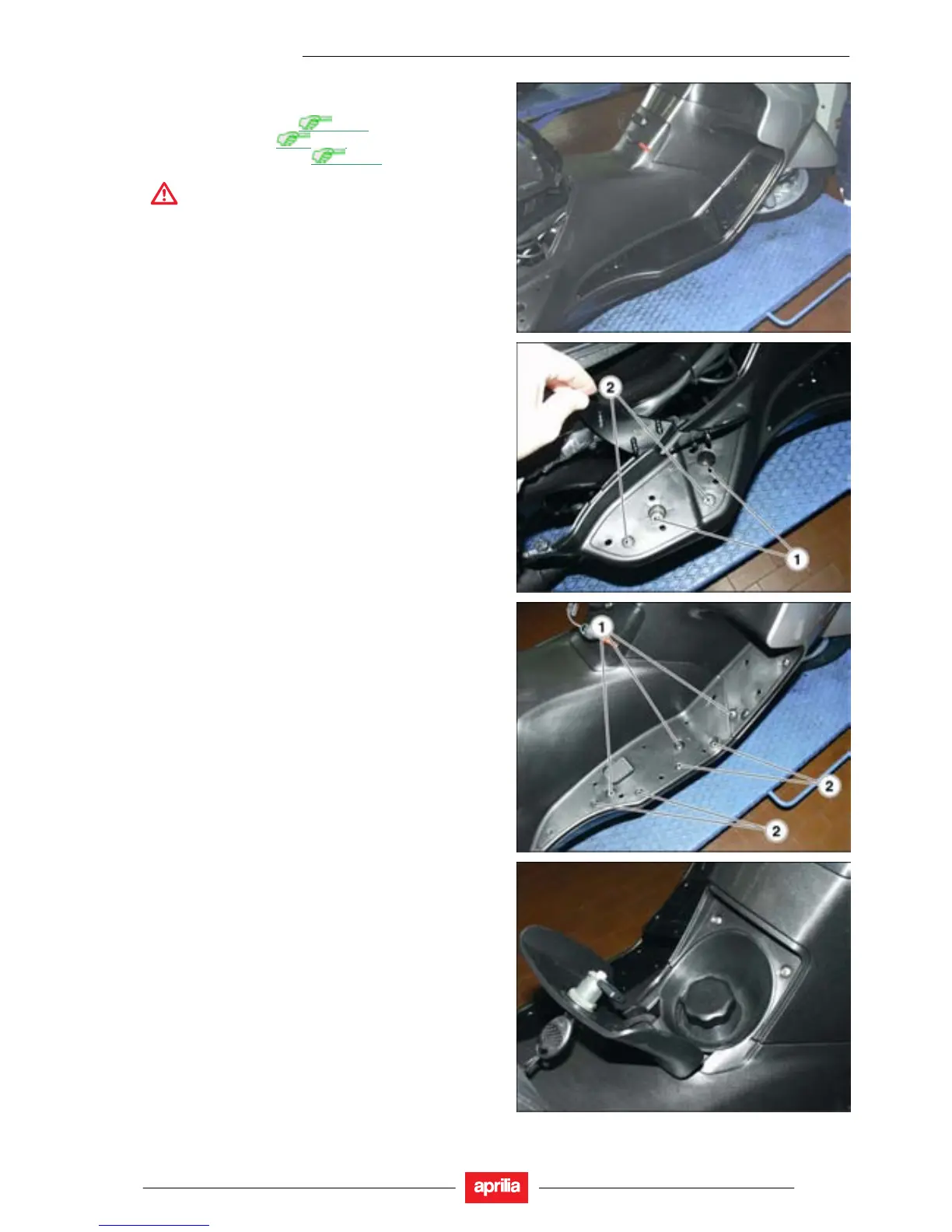

7.1.7. REMOVING THE CENTRAL TUNNEL
• Remove the saddle,
7.1.2.
• Remove the tail,
7.1.5.
• Remove the legshield,
7.1.9.
WARNING
Proceed carefully. Do not damage the tab
and/or its recesses.
• Lift and remove the mat on both sides with your hands.
• Release and remove the five screws (1) on both sides.
• Release and remove the six screws (2) on both sides.
• Insert the ignition key into the tank lock.
• Press and turn the key anticlockwise.
• Lift the filler cap flap.
• Release and remove the fuel filler cap.
