ELECTRICAL SYSTEM
8 - 22
ATLANTIC 125 - 200
8.10. VISUAL AND ACOUSTIC SIGNALS

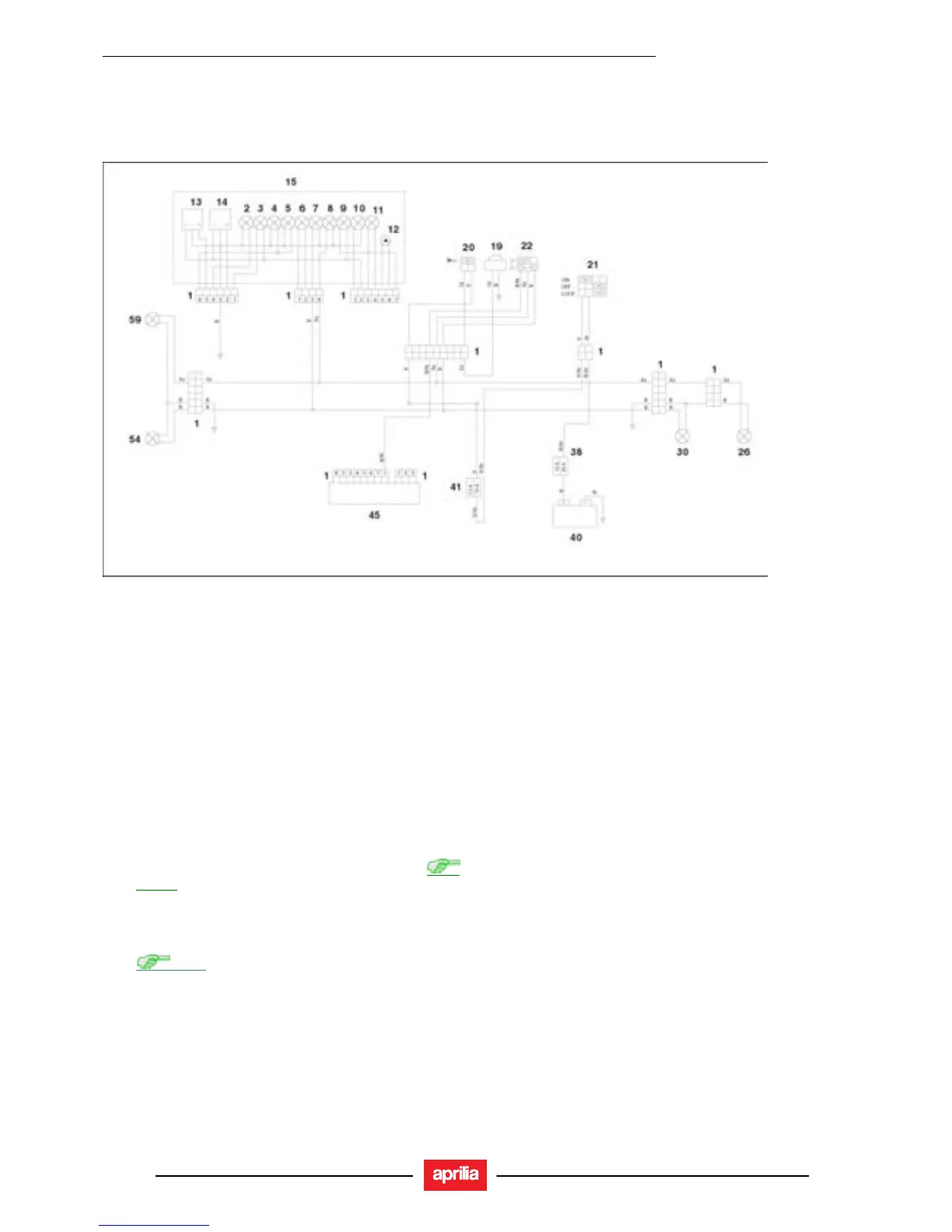

8.10.1. VISUAL AND ACOUSTIC SIGNALLING
SYSTEM
Key:
7. Right indicator light
8. Left indicator light
15. Complete dashboard
19. Warning horn
20. Horn button
21. Key-operated switch
22. Direction indicator switch
26. Rear left direction indicator
30. Rear right direction indicator
38. Main fuses
40. Battery
41. Auxiliary fuses
45. CDI control unit
54. Front right direction indicator
DIRECTION INDICATOR TROUBLESHOOTING
• Check that the bulbs are in good condition,
8.11.1.
• When one bulb is burnt out, the other bulb will flash at
doubled frequency.
• Check the direction indicator switch.
• Check the CDI control unit and replace if needed,
7.2.2.
The flasher is incorporated into the CDI control unit.
