APRILIA ATLANTIC 500 sprint User Manual

CHASSIS
7 - 50
ATLANTIC 125 - 200

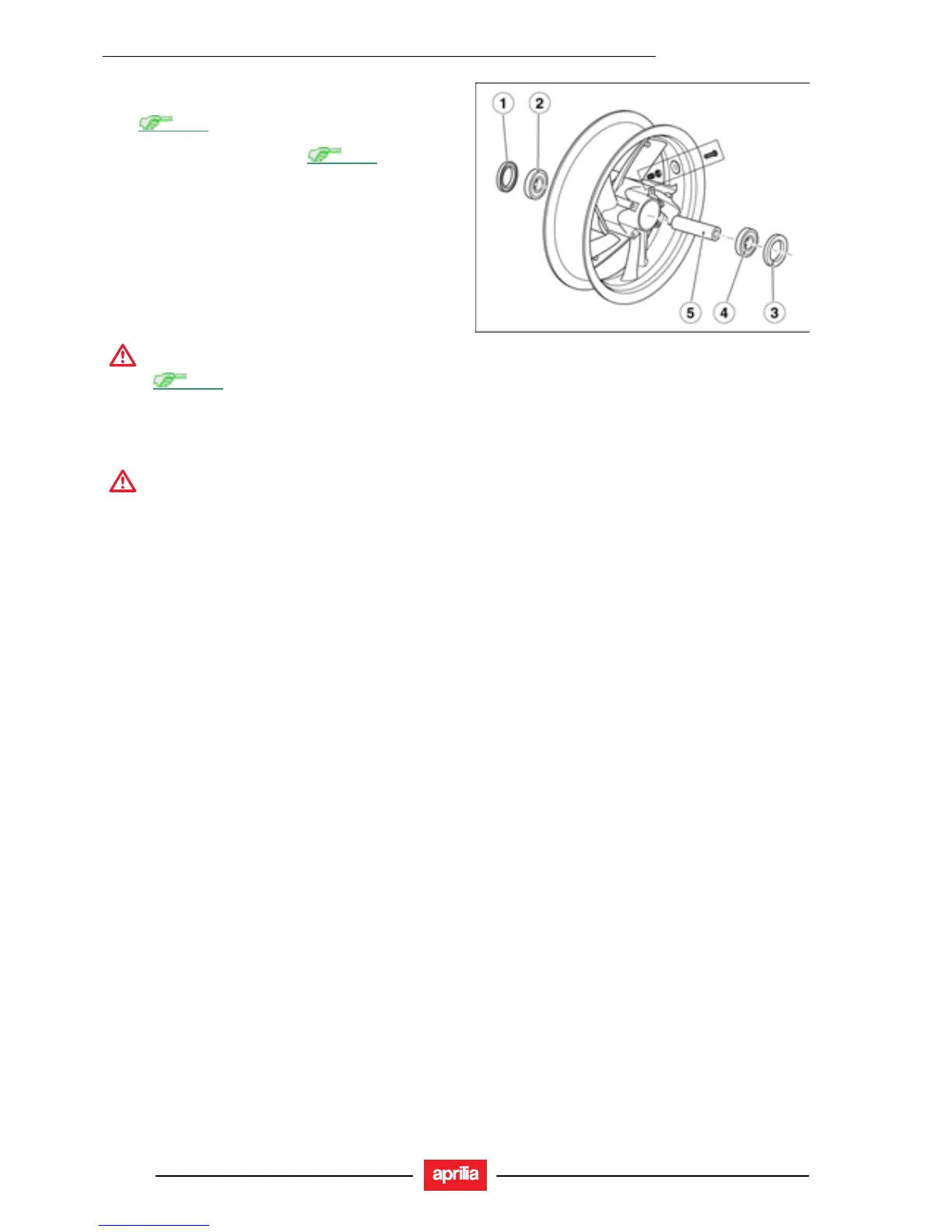

7.4.3. FRONT WHEEL DISASSEMBLY
Read
1.2.1. carefully.
• Remove the front wheel, see
7.5.2.
• Clean both ends of the hub with a cloth.
• Remove the right oil seal (1).
• Remove the right bearing (2) using a suitable extractor.
• Remove the left oil seal (3).
• Remove the left bearing (4) using a suitable extractor.
WARNING
Inspect the bearings after each removal, see
7.5.4. and replace as required.
• Collect the inner spacer (5).
• Clean the hub bore thoroughly.
• Wash all components with clean detergent.
WARNING
Refit the bearings using a drift with the same
diameter as the bearing outer ring.
Do not tap the balls or the inner ring.
Make sure to push the following components
into firm contact with each other:
- left bearing (4) with hub;
- spacer (5) with left bearing (4);
- right bearing (2) with spacer (5).

APRILIA ATLANTIC 500 sprint Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	460 cc
Cooling System	Liquid-cooled
Fuel System	Electronic fuel injection
Front Suspension	Telescopic fork
Transmission	Automatic
Rear Suspension	Dual shock absorbers
Front Brake	Single disc
