FUEL SYSTEM
4 - 5
ATLANTIC 125 - 200

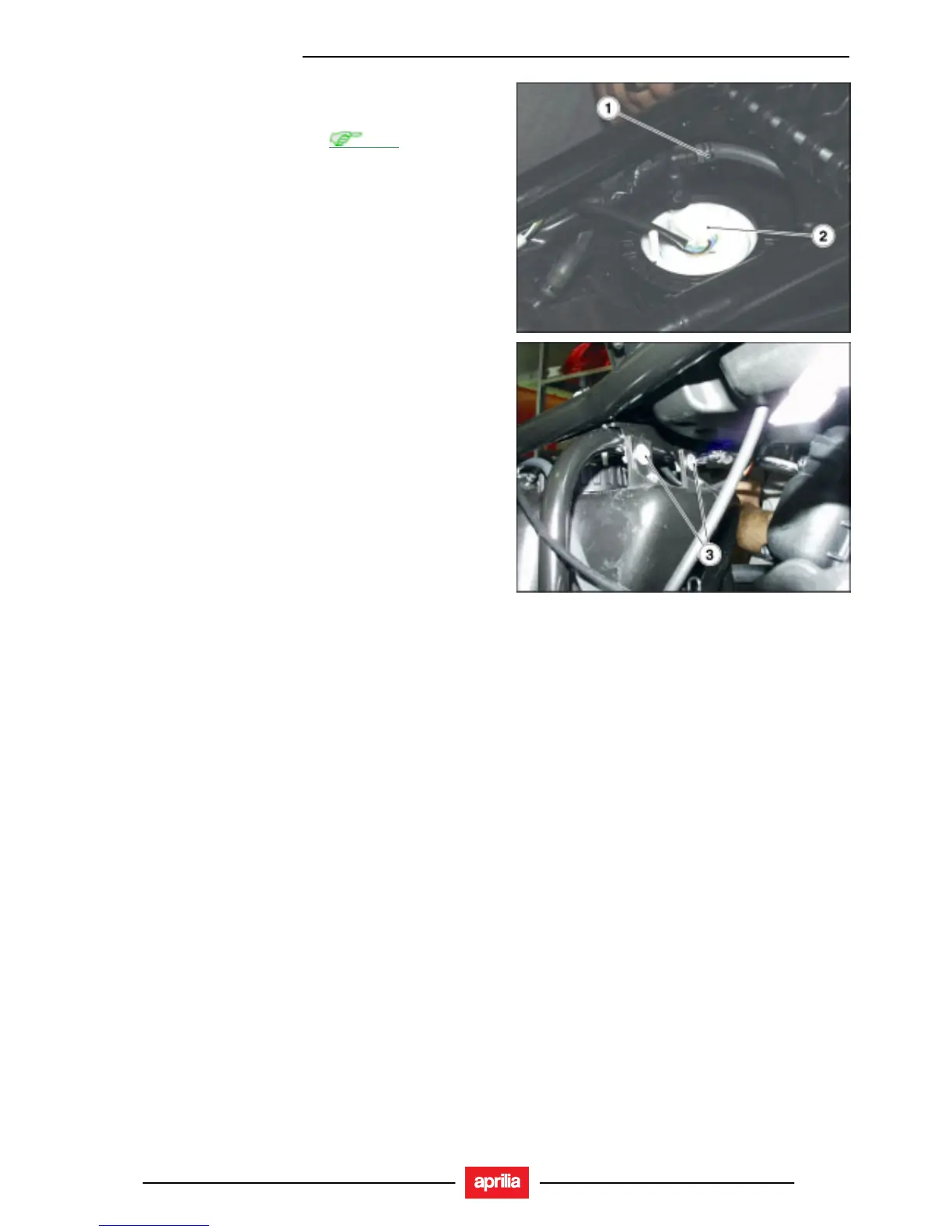

4.1.3. REMOVING THE FUEL TANK
• Lower the cooler, but leave it connected to the coolant
delivery and return pipes, 5.3.1.
• Disconnect the fuel delivery pipe (1).
• Disconnect the fuel sensor connector (2).
• Undo and remove the two rear screws (3). Keep the
washers.
• Lower and remove the fuel tank.

APRILIA ATLANTIC 500 sprint Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	460 cc
Cooling System	Liquid-cooled
Fuel System	Electronic fuel injection
Front Suspension	Telescopic fork
Transmission	Automatic
Rear Suspension	Dual shock absorbers
Front Brake	Single disc
