CHASSIS
7 - 45
ATLANTIC 125 - 200

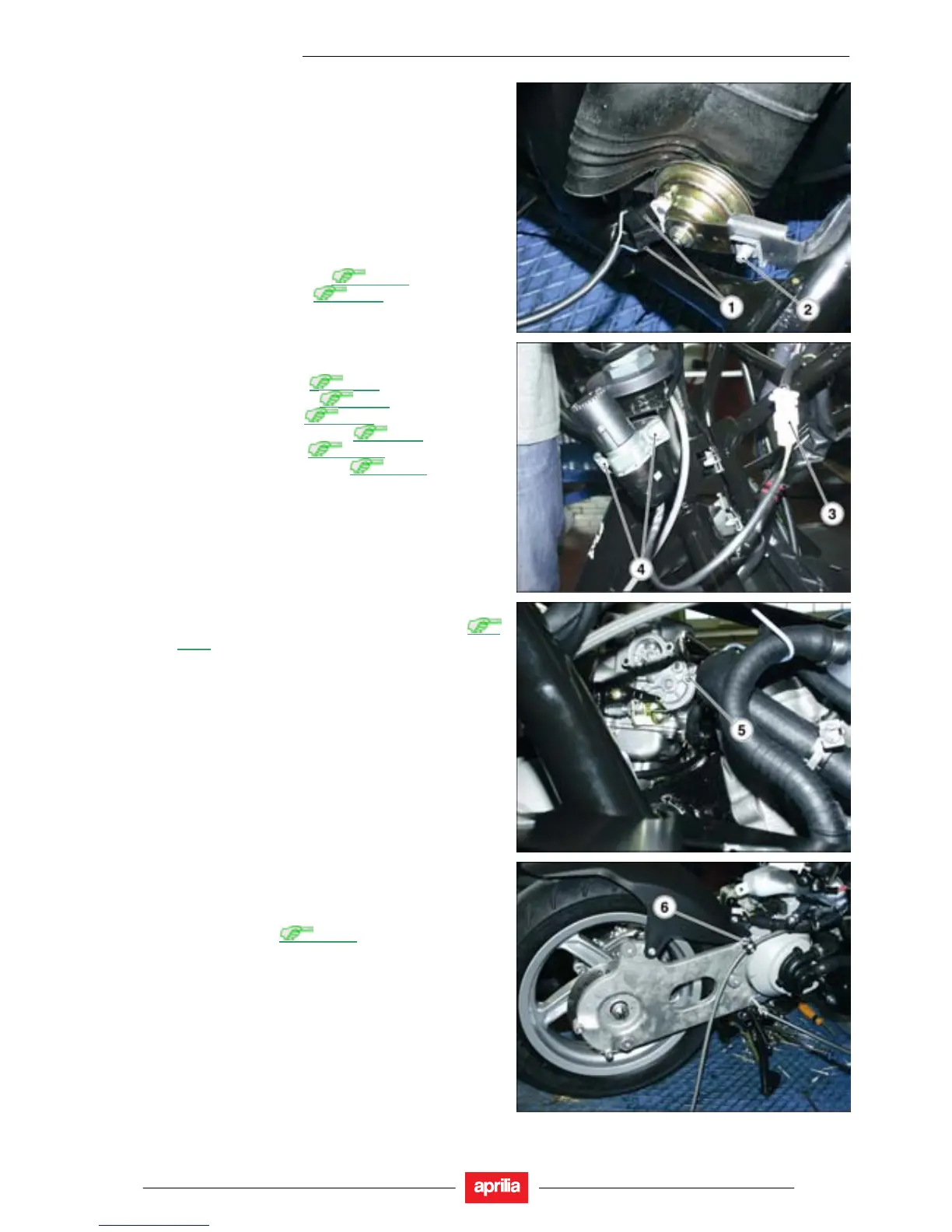

7.3.5. FRAME REMOVAL
TORQUE WRENCH SETTINGS
Screw (6) 12 Nm (1.2 kgm)
NOTE Certain procedures include cross-references to
relevant sections of the manual. Some of the operations
described there may not be strictly required for the job at
hand. Proceed sensibly to avoid redundant work, that is,
always make sure you really need to remove a particular
component before proceeding.
• Remove the splashguard,
7.1.18.
• Remove the headlight,
7.2.7.
• Disconnect the two horn connectors (1).
• Release and remove the screw (2).
• Disconnect the ignition switch connector (3).
• Release and remove the two screws (4).
• Remove the fuel tank,
4.1.3.
• Remove the side stand,
7.4.3.
• Remove the radiator,
5.3.1.
• Remove the rear side panels,
7.1.3.
• Remove the linkages,
7.10.2.
• Remove the shock absorber,
7.10.1.
• Disconnect the throttle cable (5) at the carburetor end.
• Remove the calliper from the rear brake disc,
7.7.5.
• Release and remove the screw (6).
NOTE Release all cables and hoses from the ties and clips
along their full length.
• Remove the coil,
7.2.10.
