APRILIA ATLANTIC 500 sprint User Manual

CHASSIS
7 - 43
ATLANTIC 125 - 200

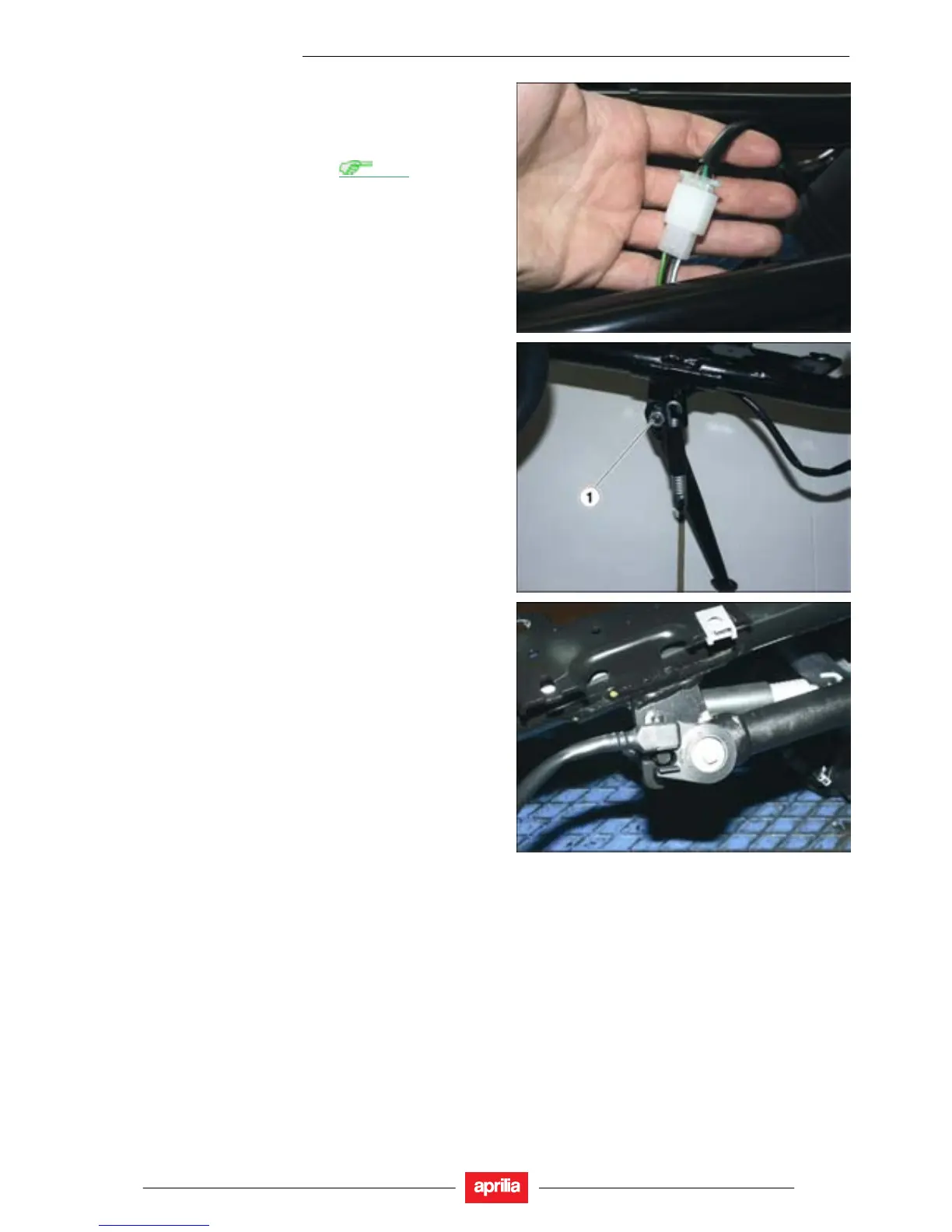

7.3.3. SIDE STAND REMOVAL
TORQUE WRENCH SETTINGS
Screws (1) 20 Nm (2.0 kgm)
• Remove the central tunnel,
7.1.7.
• Disconnect the side stand switch connector.
• Unhook the two springs from the stand.
• Release and remove the nut (1).
• Working from the opposite end, remove in the order:
bolt, washer, stand switch and stand.

APRILIA ATLANTIC 500 sprint Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	460 cc
Cooling System	Liquid-cooled
Fuel System	Electronic fuel injection
Front Suspension	Telescopic fork
Transmission	Automatic
Rear Suspension	Dual shock absorbers
Front Brake	Single disc
