APRILIA ATLANTIC 500 sprint User Manual

ELECTRICAL SYSTEM
8 - 28
ATLANTIC 125 - 200

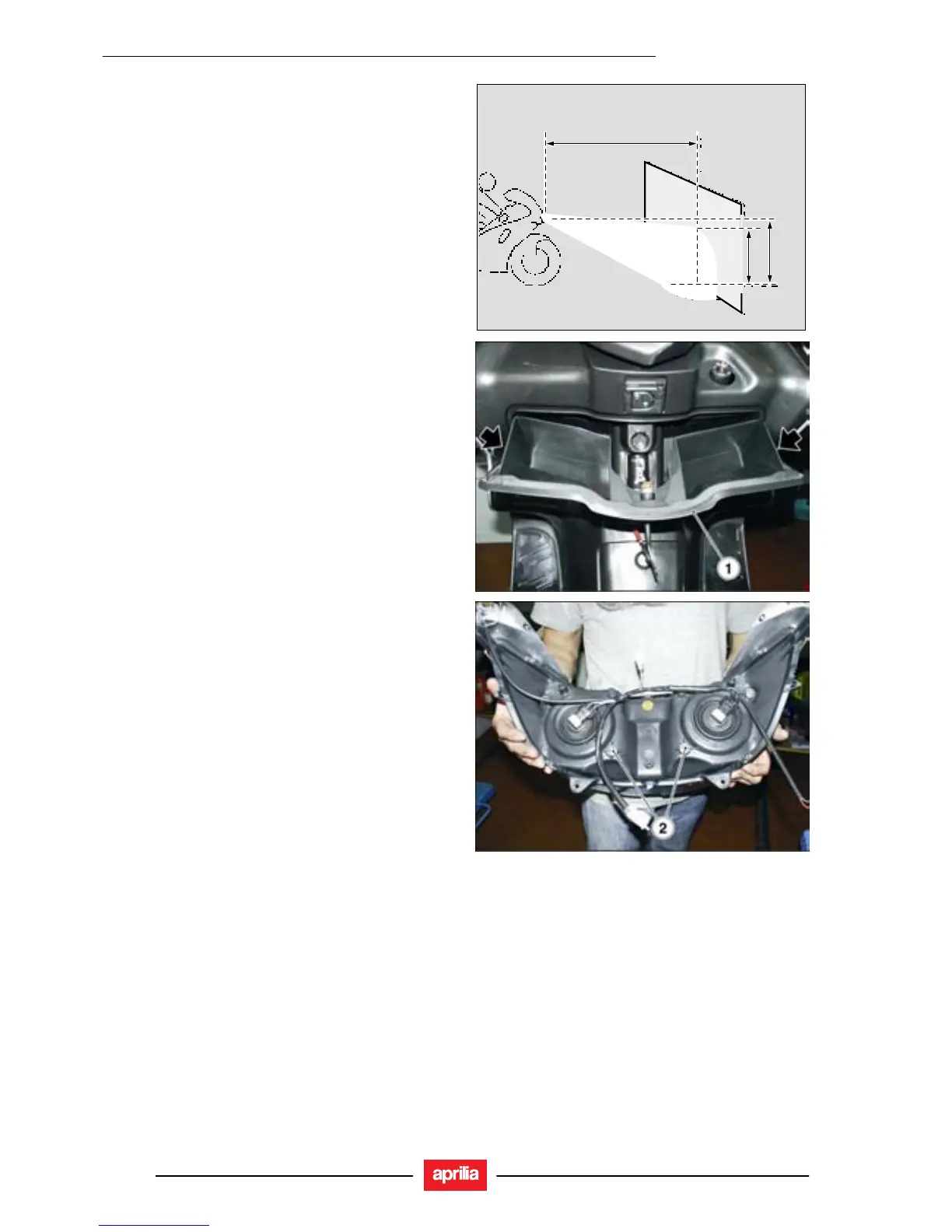

8.13. BEAM SETTING
8.13.1. BEAM HEIGHT SETTING
This is a quick beam inspection procedure. Place the vehicle
ten metres away from a vertical wall. It is important that the
motorcycle be on level ground.
Switch on the low beam and sit astride the vehicle. The light
spot on the wall should be just below the horizontal line of
the headlight (about nine/tenths of overall height).
9/10 H
10 m
H
To set beam height:
• Open the glove compartment (1) and unhook the side
guides by pressing moderately downwards.
• Use a screwdriver and rotate the lower adjuster screws
(2) of both beams:
TIGHTEN (turn clockwise) to lower the beam.
SLACKEN (turn anticlockwise) to raise the beam.

APRILIA ATLANTIC 500 sprint Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	460 cc
Cooling System	Liquid-cooled
Fuel System	Electronic fuel injection
Front Suspension	Telescopic fork
Transmission	Automatic
Rear Suspension	Dual shock absorbers
Front Brake	Single disc
