ELECTRICAL SYSTEM
8 - 20
ATLANTIC 125 - 200
8.9. LIGHT CIRCUIT

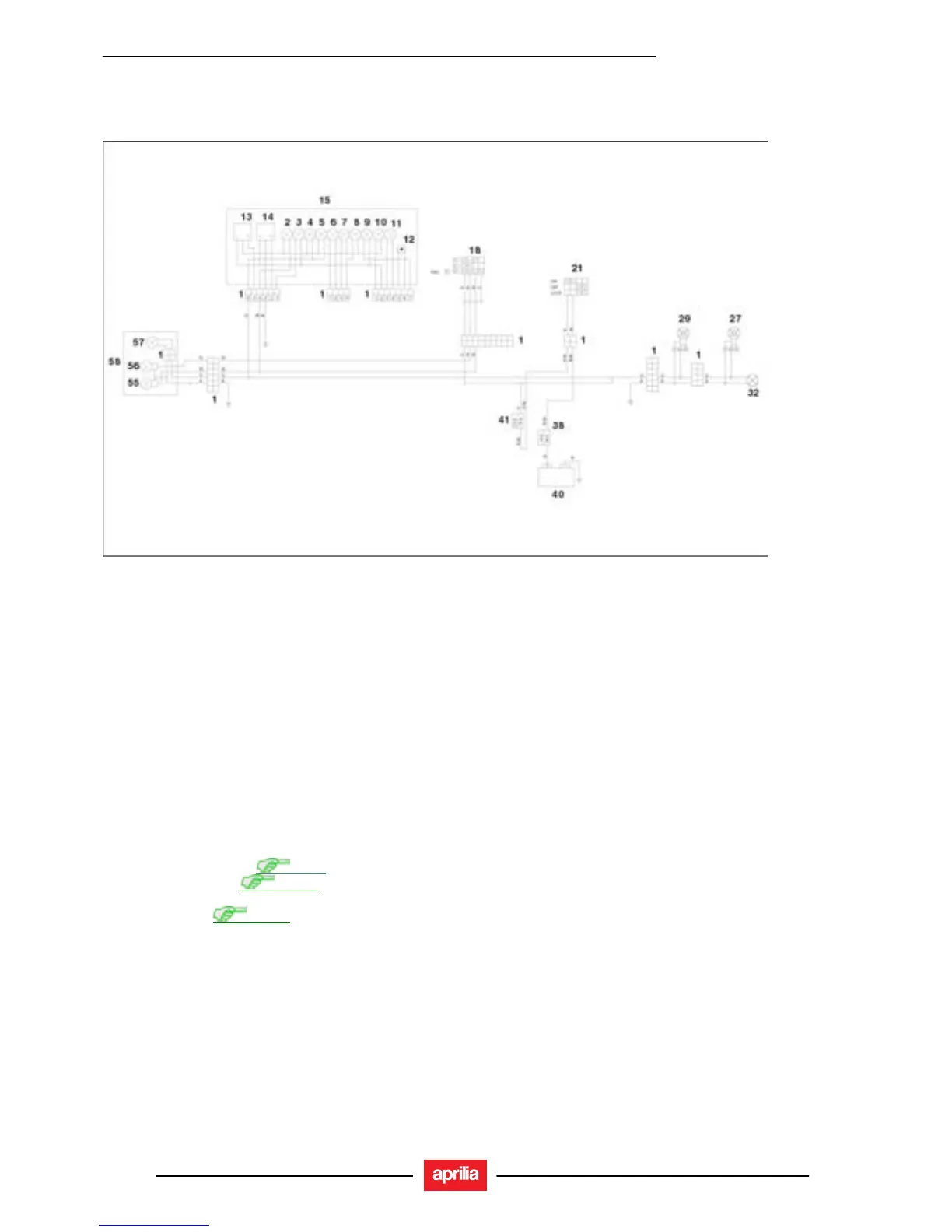

8.9.1. LIGHT CIRCUIT
Key:
2. High beam light
4. Parking lamp light
5. Dashboard backlighting bulbs
15. Complete dashboard
18. Left switch
21. Key-operated switch
27. Parking light/left brake light
29. Parking light /right brake light
32. Number plate light
38. Main fuses
40. Battery
41. Auxiliary fuses
55. High beam lamp
56. Low beam lamp
57. Parking light
58. Complete headlight
TROUBLESHOOTING
- Check battery condition,
2.4.1.
- Check fuse condition,
8.12.1.
- Check the light switch
- Check the bulbs,
8.11.1.
