CHASSIS
7 - 21
ATLANTIC 125 - 200
7.1.15. REAR MUDGUARD REMOVAL
TORQUE WRENCH SETTINGS
Airbox screws (1) 8 Nm (0.8 kgm)
Screws (2) 12 Nm (1.2 kgm)

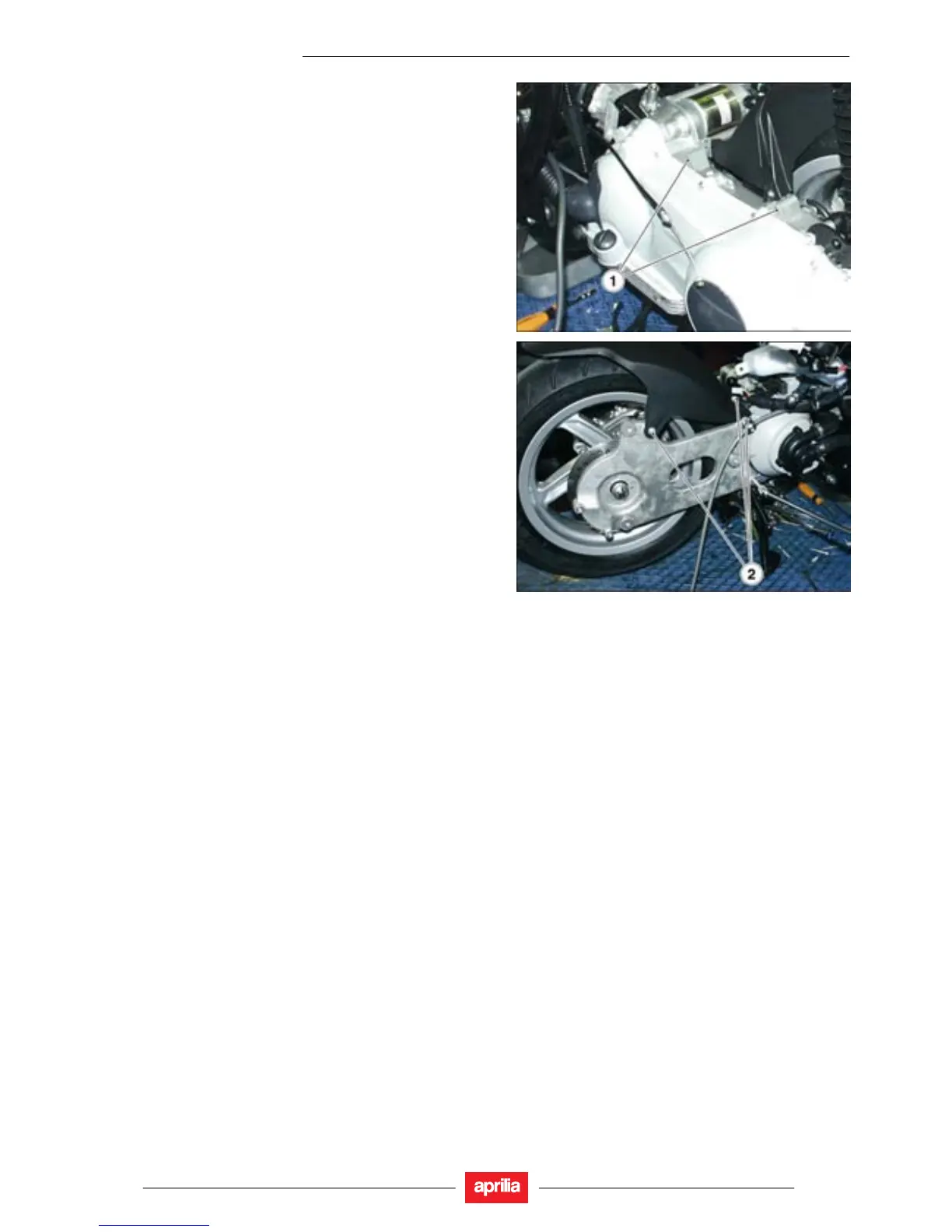

• Unscrew the two retaining screws (1) of the airbox.
• Unscrew the three retaining screws (2) and collect the
cable retainer.
• Remove the rear mudguard.
