7.6. BRAKES

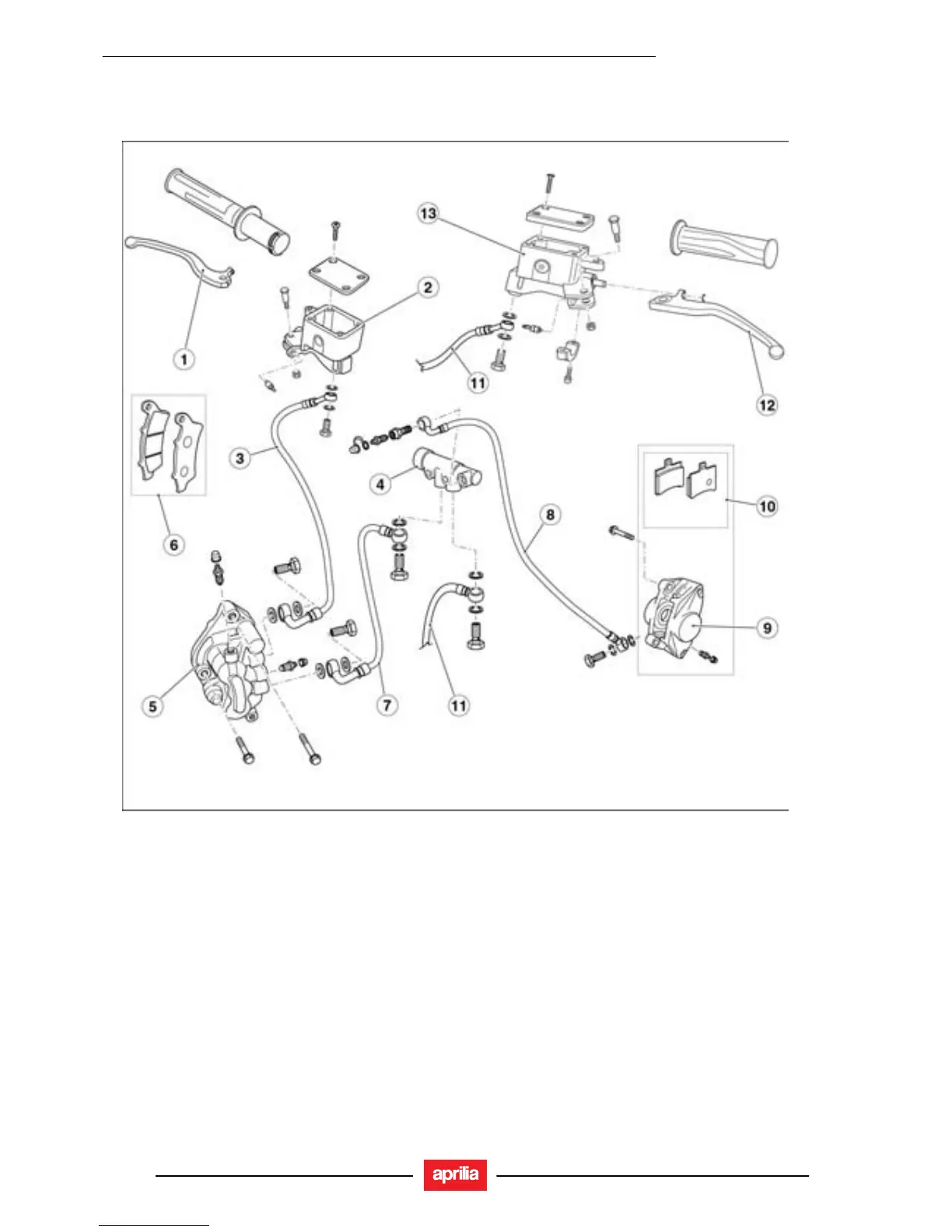

7.6.1. BRAKES DIAGRAM
Key:
1. Front brake lever
2. Front brake master cylinder/fluid reservoir
3. Front brake lever to calliper hose
4. Proportioning valve
5. Front brake calliper
6. Front brake pads
7. Proportioning valve to front brake calliper hose
8. Proportioning valve to rear brake calliper hose
9. Rear brake calliper
10. Rear brake pads
11. Rear brake lever to proportioning valve hose
12. Rear brake lever
13. Rear brake master cylinder/fluid reservoir

APRILIA ATLANTIC 500 sprint Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	460 cc
Cooling System	Liquid-cooled
Fuel System	Electronic fuel injection
Front Suspension	Telescopic fork
Transmission	Automatic
Rear Suspension	Dual shock absorbers
Front Brake	Single disc
