ELECTRICAL SYSTEM
8 - 4
ATLANTIC 125 - 200
8.2. FOREWORD
8.2.1. FOREWORD
Please read the following information before reading this
section.
Note For ease of reference, the same numbering is used in
the specific wiring diagrams and in the general schematics.
WIRING COLOUR CODES
Ar Orange
Az Light blue
B Blue
Bi White
G Yellow
Gr Grey
M Brown
N Black
R Red
Ro Pink
V Green
Vi Purple
ELECTRICAL CONNECTORS
Disconnect the electrical connectors as follows:
• Press down on the locking tab, where fitted.
WARNING
Never separate two connectors by pulling on
the wiring.
• Grasp both connectors and pull them in opposite
directions until they become separated.
• Remove any dirt, rust, moisture, etc. from inside the
connector blowing with compressed air.
• Ensure that the wires are securely crimped to the
terminals inside each connector.
NOTE A connector will only locate properly into the
matching connector when it is inserted in the correct
mounting position.

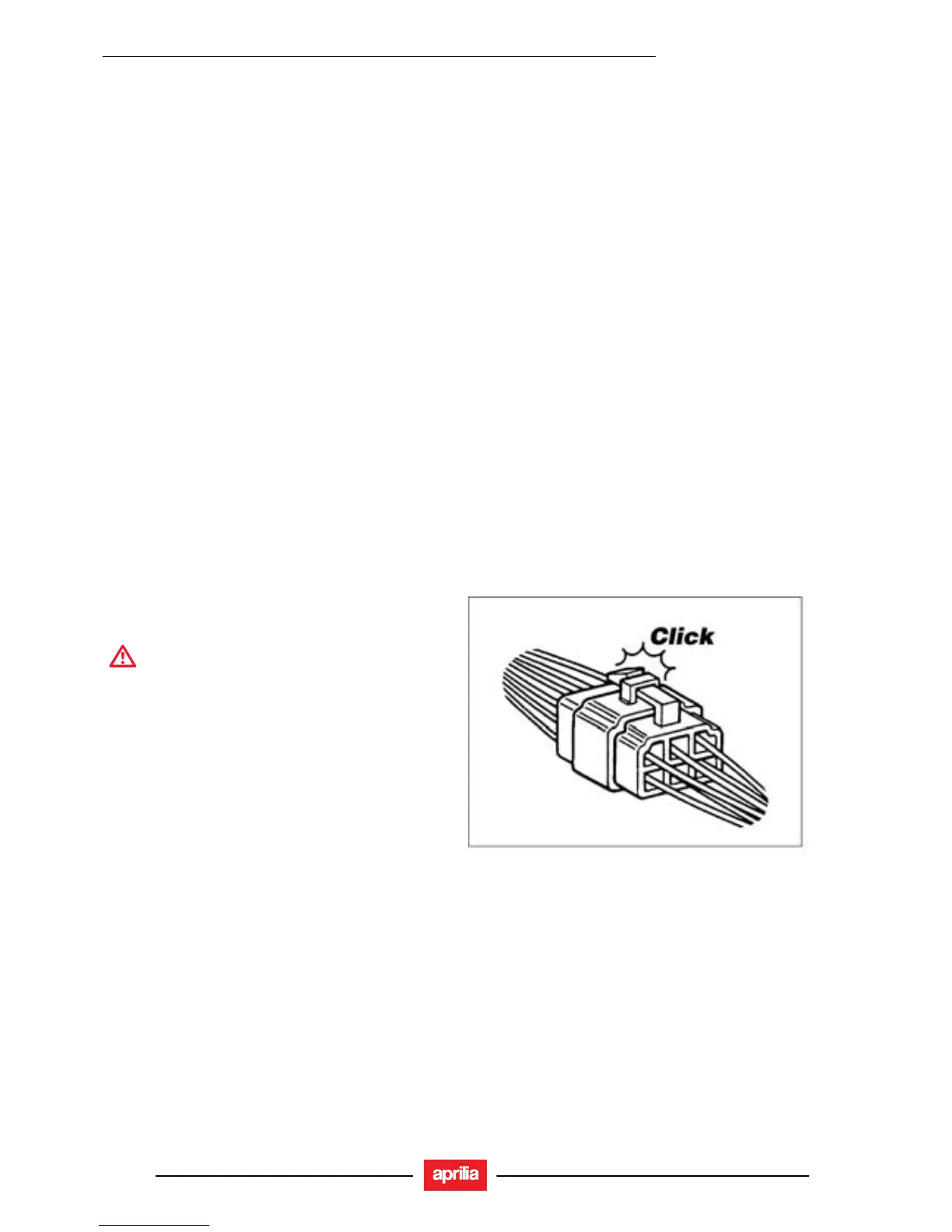

• When refitting, reconnect the two connectors and
ensure that they become fully engaged (where fitted,
the locking tab will click audibly into place).
