APRILIA ATLANTIC 500 sprint User Manual

ELECTRICAL SYSTEM
8 - 3
ATLANTIC 125 - 200
8.1. LAYOUT OF COMPONENTS

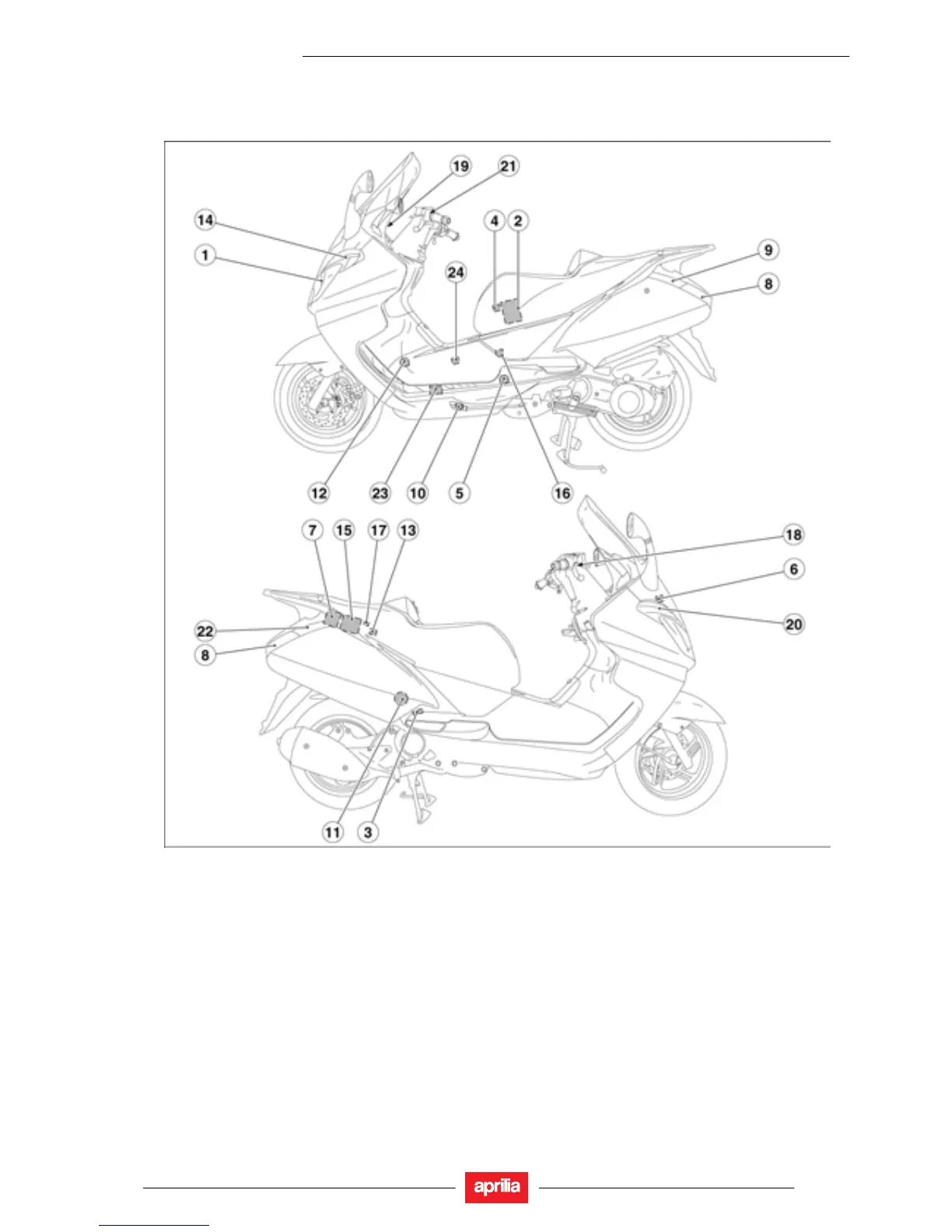

8.1.1. LAYOUT OF ELECTRICAL COMPONENTS
Key:
1. Headlight
2. Battery
3. Spark plug
4. Main fuses
5. Coil
6. Auxiliary fuses
7. Voltage regulator
8. Tail light
9. Rear left direction indicator
10. Side stand switch
11. Starter motor
12. Warning horn
13. Starter relay
14. Front left direction indicator
15. Engine Control Unit
16. Coolant thermistor
17. ECU relay
18. Front brake light switch
19. Dashboard
20. Front right direction indicator
21. Rear brake light switch
22. Rear right direction indicator
23. Fan
24. Fuel sensor

APRILIA ATLANTIC 500 sprint Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	460 cc
Cooling System	Liquid-cooled
Fuel System	Electronic fuel injection
Front Suspension	Telescopic fork
Transmission	Automatic
Rear Suspension	Dual shock absorbers
Front Brake	Single disc
