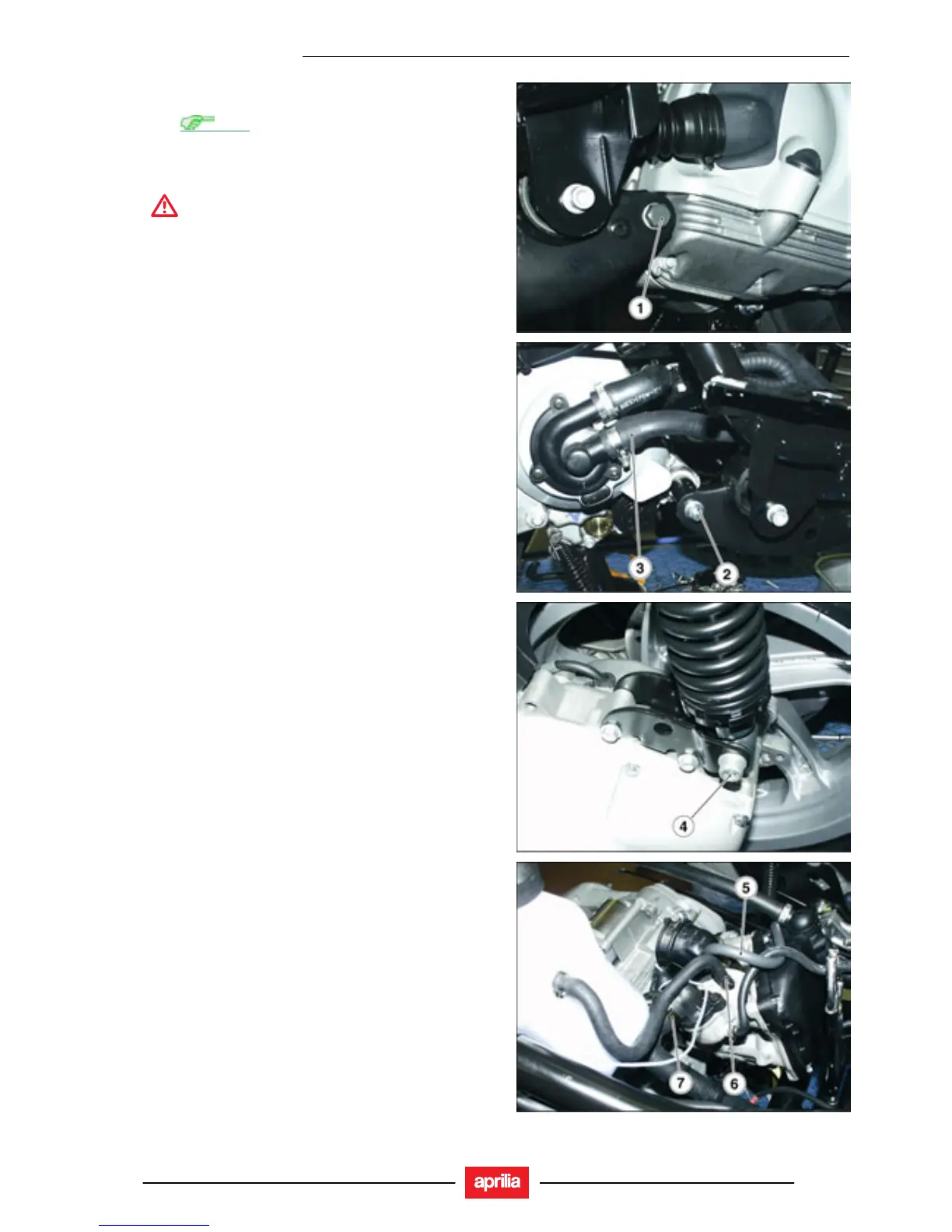

6.2.2. INSTALLING THE ENGINE INTO THE FRAME
Read
1.2.1. carefully.
TORQUE WRENCH SETTINGS
Lower mounting bolt (4) 50 Nm (5.0 kgm)
DANGER
Handle the engine with care and be careful of
your finger and limbs.
• Shift the engine in small motions until matching the
mounting holes perfectly.
• Insert the bolt (1) from the left side with washer and
spacer.
• Tighten the nut (2) at the opposite end.
• Fit the hose (3) to the coolant pump.
• Secure the hose (3) with the clamp.
• Tighten the shock absorber lower bolt (4).
• Fit the vacuum hose (5) to the intake manifold.
• Fit the drain hose (6) to the head.
• Fit the hose (7) to the thermal expansion valve.
