ELECTRICAL SYSTEM
8 - 15
ATLANTIC 125 - 200
8.7. SENSORS

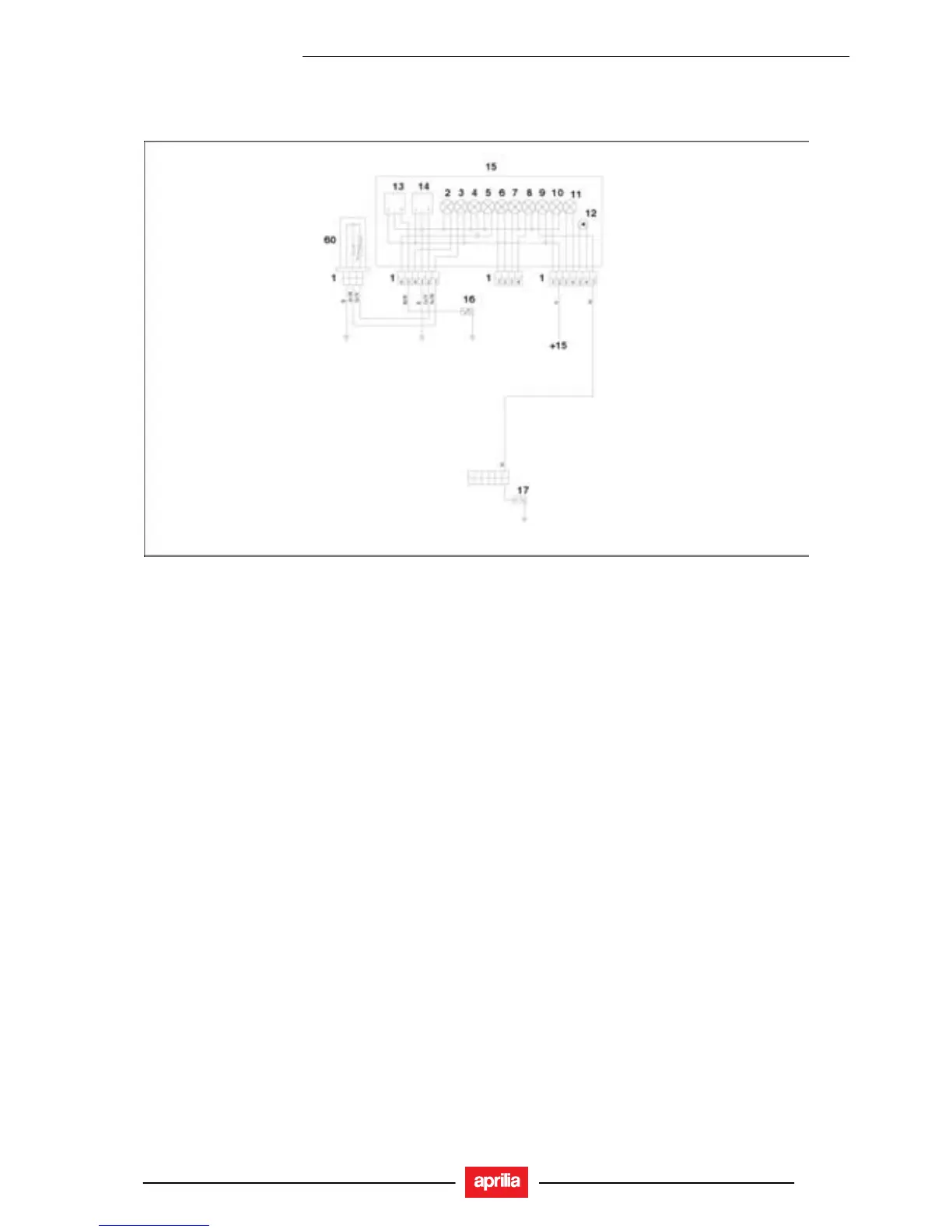

8.7.1. SENSOR CIRCUIT
Key:
14. Fuel level indicator
15. Complete dashboard
16. Coolant thermistor
17. Oil pressure sensor
60. Fuel level sensor
NOTE Terminal 2 of the 7-way connector is fed a positive
voltage which is controlled by the switch.
COOLANT TEMPERATURE
Dashboard indicator test
• Disconnect the coolant thermistor connector and
connect a resistor at the connector end.
• Set the key to ON and note the dashboard indicator
reading.
Ratings of resistors to be connected to the connector
- Resistor rated <75 ohm : corresponds to full scale
indication
- Resistor rated 105 ohm : beginning of red area ± 5°
- Resistor rated >1000 ohm : beginning of scale.
