CHASSIS
7 - 4
ATLANTIC 125-200

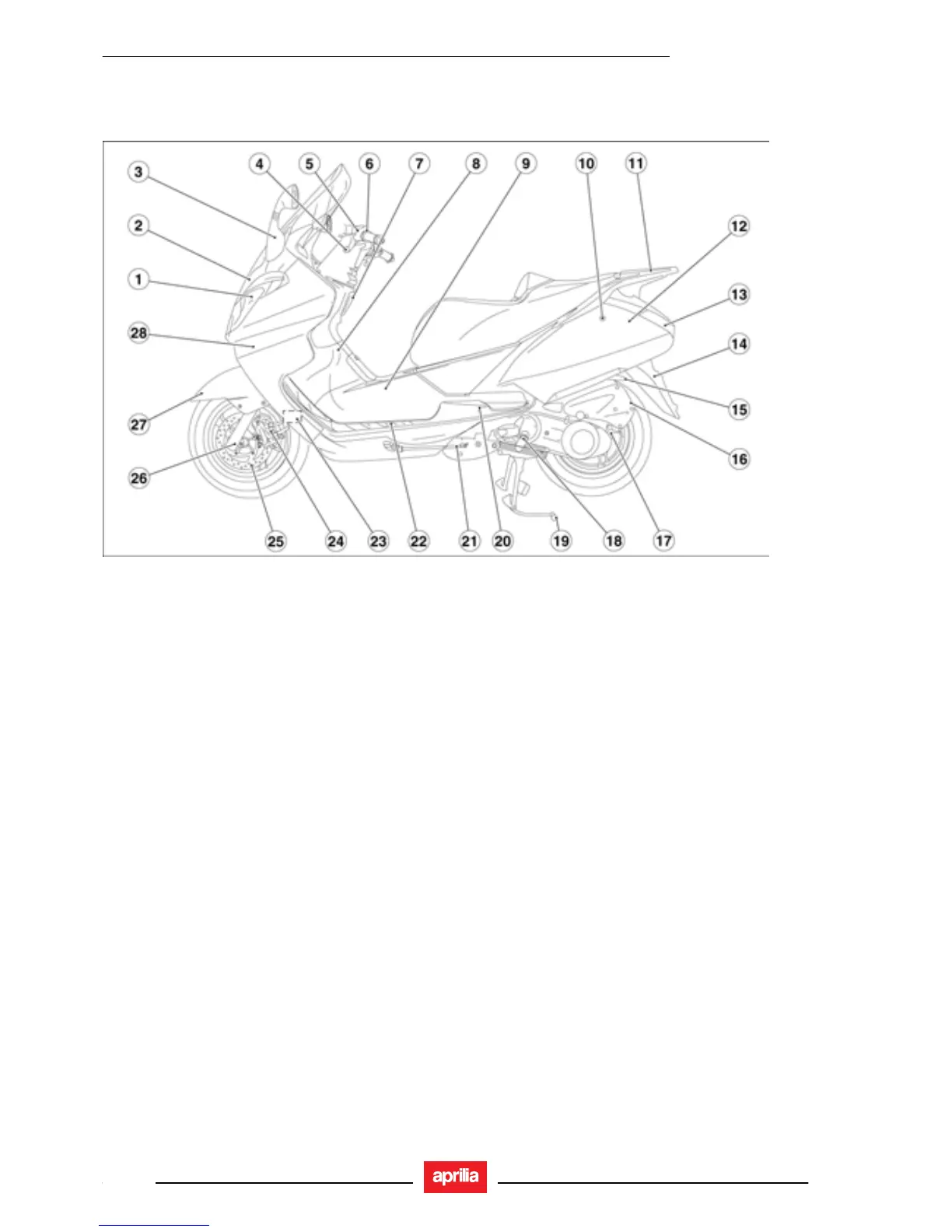

7.1. BODYWORK
7.1.1. BODYWORK
1. Light unit
2. Front cover
3. Left mirror
4. Rear brake lever
5. Rear brake master cylinder
6. Left switch
7. Glove compartment
8. Legshield
9. Central tunnel
10. Saddle lock
11. Luggage rack
12. Tail
13. Tail light
14. Number plate holder
15. Mudguard
16. Air filter
17. Transmission oil level
18. Engine oil level
19. Centre stand
20. Passenger footrests
21. Side stand
22. Rider footrests
23. Warning horn
24. Front brake calliper
25. Front brake disc
26. Front fork
27. Front mudguard
28. Left side fairing

APRILIA ATLANTIC 500 sprint Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	460 cc
Cooling System	Liquid-cooled
Fuel System	Electronic fuel injection
Front Suspension	Telescopic fork
Transmission	Automatic
Rear Suspension	Dual shock absorbers
Front Brake	Single disc
