ELECTRICAL SYSTEM
8 - 12
ATLANTIC 125 - 200
8.6. STARTER CIRCUIT

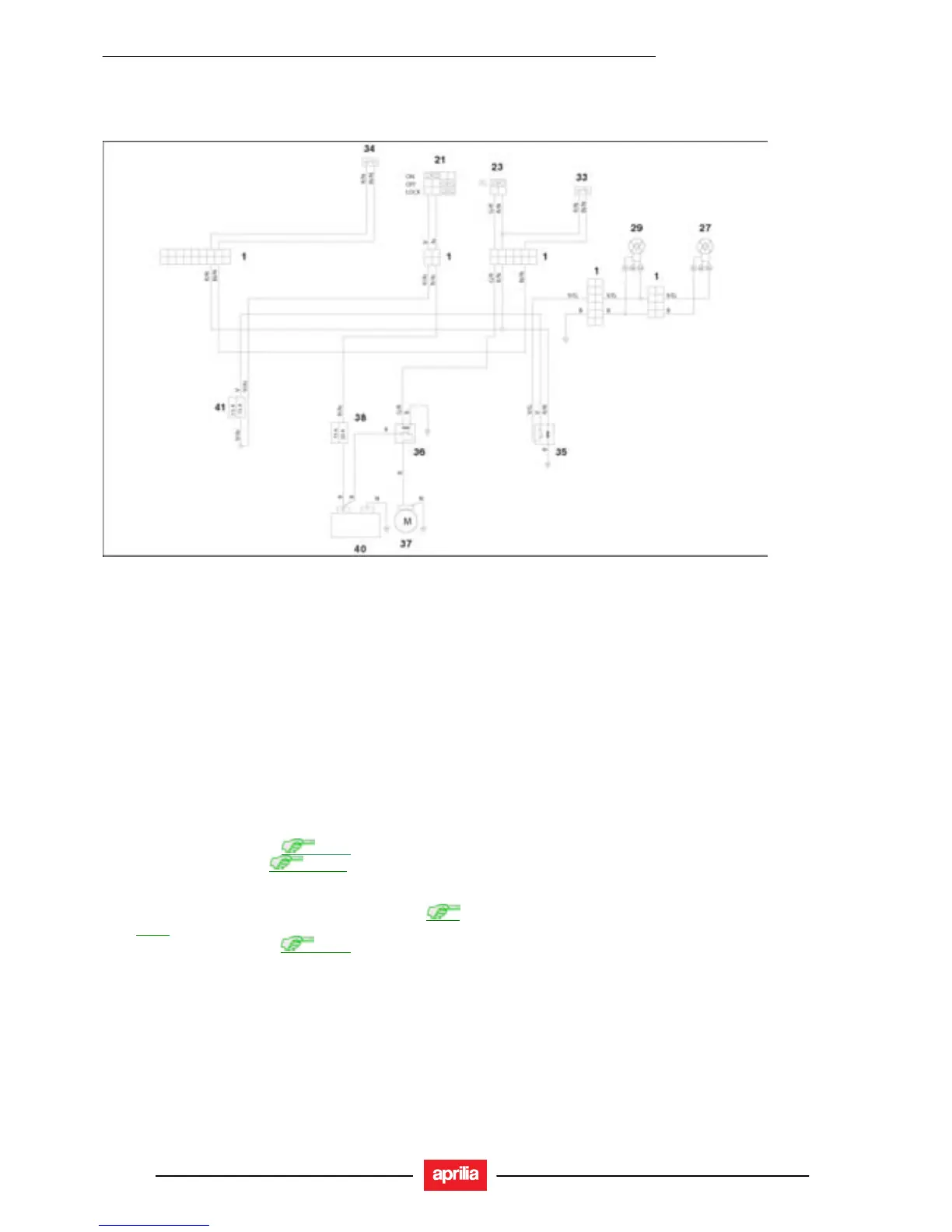

8.6.1. STARTER CIRCUIT
Key:
21. Key-operated switch
23. Starter button
27. Parking/left brake light bulb
29. Parking/right brake light bulb
33. Front brake light switch
34. Rear brake light switch
35. Brake light /starting interlock relay
36. Starter relay
37. Starter motor
38. Main fuses
41. Auxiliary fuses
NOTE The white/black wire Bi/N (1) is fed by the ignition
relay 61 (see ignition system diagram).
TROUBLESHOOTING
• Check battery condition,
2.4.1.
• Check fuse condition,
8.12.1.
• Check the ignition switch.
• Check the engine kill switch.
• Check the brake light/starting interlock relay,
8.4.1.
• Check the ignition relay,
8.4.1.
• Check the start button.
• Check the starter relay.
• Check the starter motor.
