FUEL SYSTEM
4 - 7
ATLANTIC 125 - 200
4.2. AIR FILTER
4.2.1. REMOVING THE AIR BOX
TIGHTENING TORQUE SETTINGS
Screws (4) 8 Nm (0.8 Kgm).

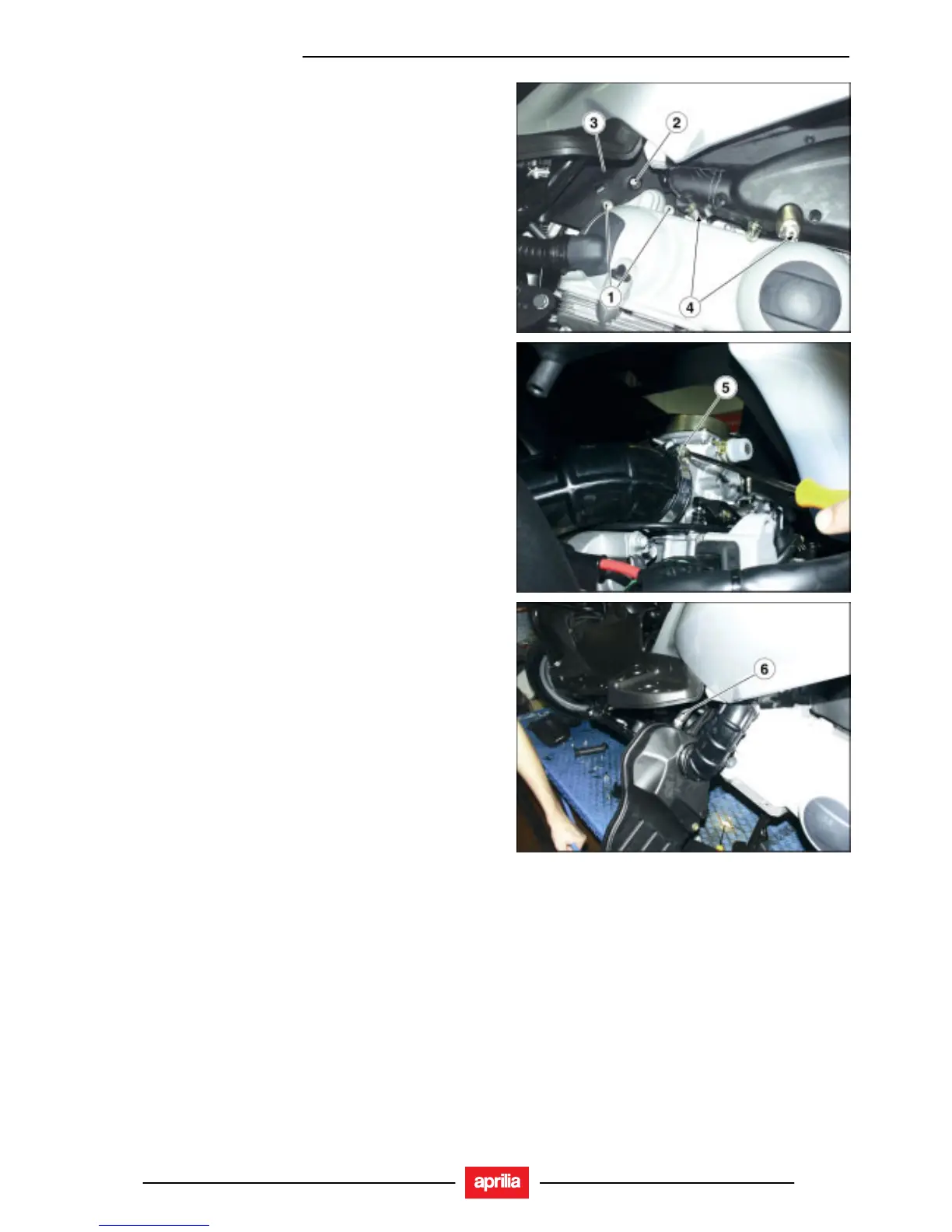

• Undo and remove the two screws (1).
• Undo and remove screw (2).
• Remove the engine breather pipe protection (3).
• Undo and remove the two screws (4).
• Loosen cable tie (5) and slide intake line out of
carburetor.
• Move the filter box aside.
• Slide the engine breather pipe (6) out of air box.
• Remove air box.
