CHASSIS
7 - 8
ATLANTIC 125 - 200

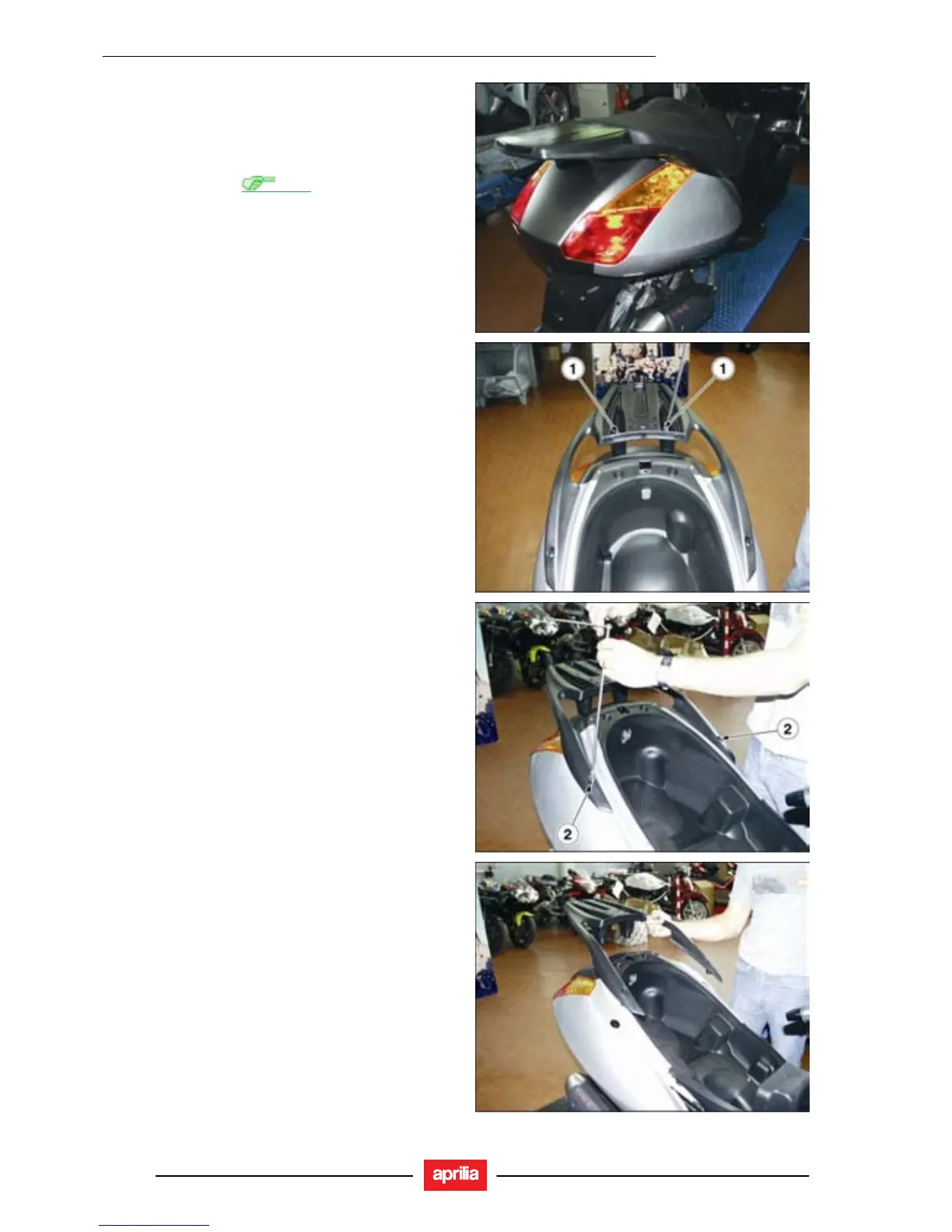

7.1.4. LUGGAGE RACK REMOVAL
TORQUE WRENCH SETTINGS
Screws (1) 10 Nm (1.0 kgm)
Screws (2) 24 Nm (2.4 kgm)
• Raise the saddle,
7.1.2.
• Remove the luggage rack cover.
• Release and remove the two screws (1) and collect the
two washers.
• Release and remove the two screws (2).
• Remove the luggage rack.

APRILIA ATLANTIC 500 sprint Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	460 cc
Cooling System	Liquid-cooled
Fuel System	Electronic fuel injection
Front Suspension	Telescopic fork
Transmission	Automatic
Rear Suspension	Dual shock absorbers
Front Brake	Single disc
