ELECTRICAL SYSTEM
8 - 18
ATLANTIC 125 - 200
8.8. FAN AND REAR TOP BOX LIGHT

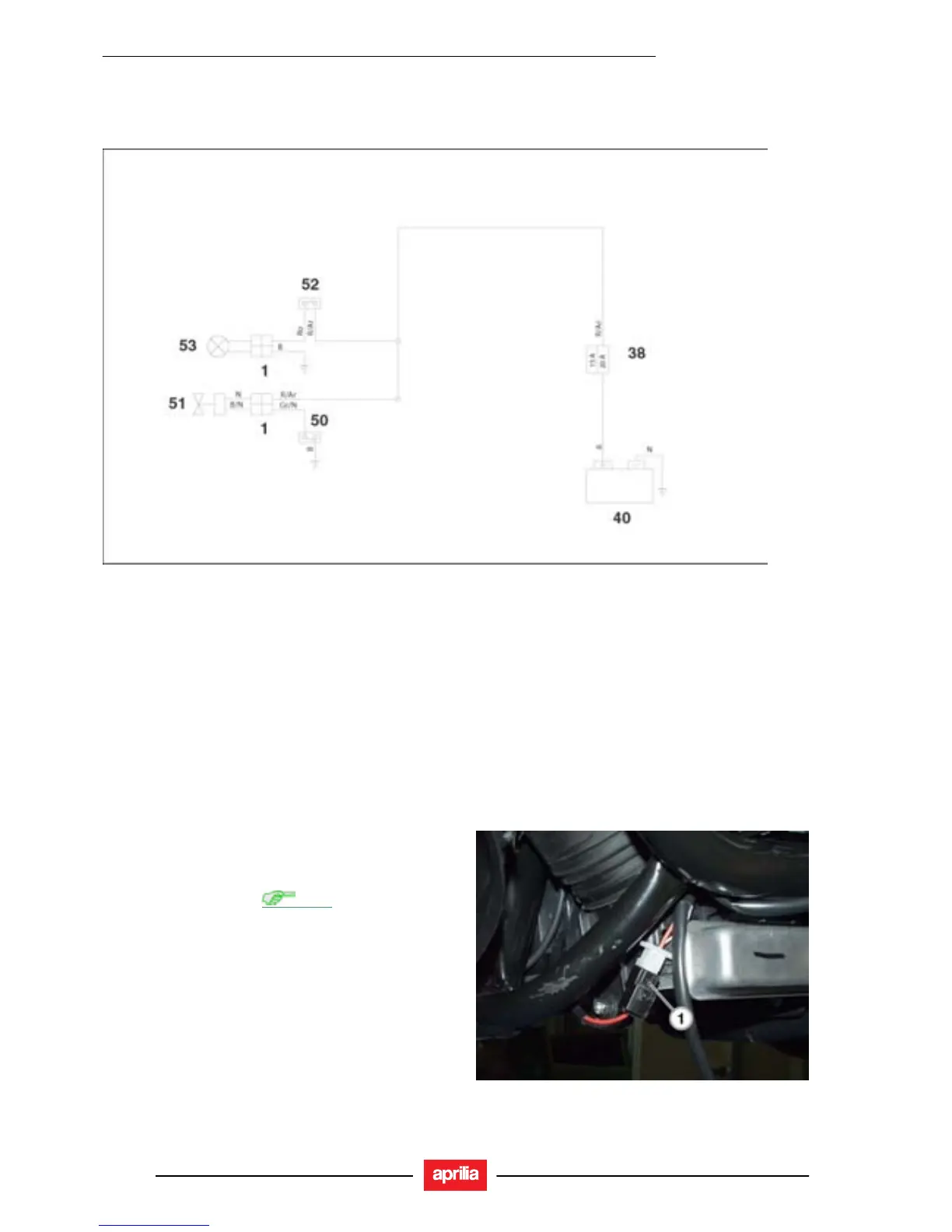

8.8.1. FAN AND REAR TOP BOX LIGHT SYSTEM
Key:
38. Main fuses
40. Battery
50. Thermal switch
51. Fan
52. Rear top box light switch
53. Rear top box light
FAN SYSTEM CHECK
Cooling fan test
To check for proper fan operation:
• Remove the air dam,
7.1.8.
• Disconnect the electric connection (1) that operates the
cooling fan.
• Feed 12 VDC to the fan. Observe the correct polarity.
Check fan for proper operation.
