Printer parts
Printer parts
Printer parts

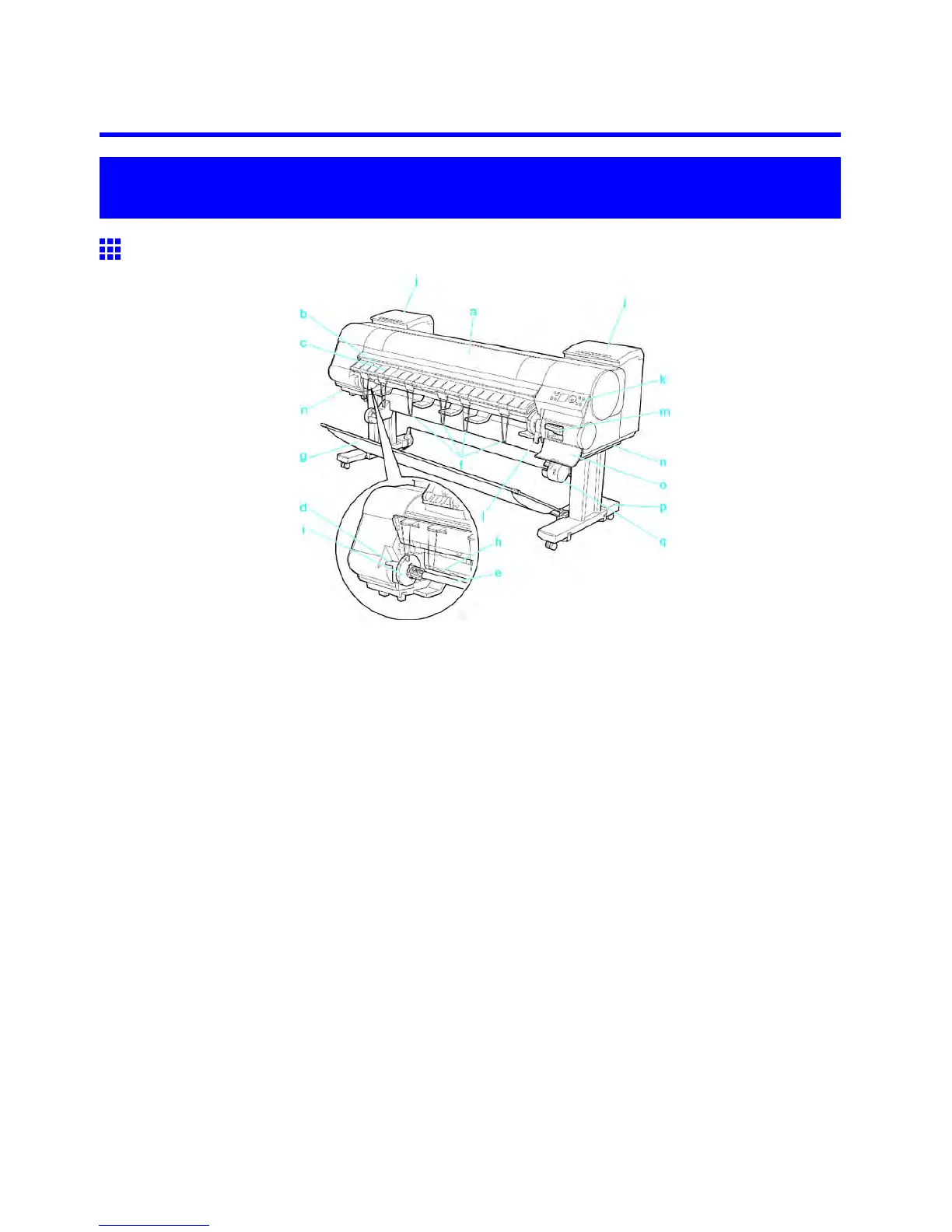

Front
a. T op Cover
Open this cover to install the Printhead , load paper , and remove any jammed paper from inside the
printer as needed. ( → P .10 )
b. Cutter Groove
Paper is cut (using the cutter or manually with scissors) over this groove.
c. Ejection Guide
Guides printed documents as they are ejected. Open this guide when loading a roll.
d. Roll Holder Slot
Slide the Roll Holder into this slot.
e. Roll Holder
Load the roll on this holder .
f. Ejection Support
Prevents printed documents from winding around the Roll Holder or Paper Feed Slot .
g. Output Stacker (Optional)
A cloth tray that catches ejected documents.
h. Paper Feed Slot
When loading a roll, insert the edge of the roll paper here.
i. Holder Stopper
Secure the roll on the Roll Holder with this part.
j. Ink T ank Cover
Open this cover to replace an Ink T ank . ( → P .12 )
k. Control Panel
Use this panel to operate the printer and check the printer status. ( → P .14 )
Printer parts 7
