Media take-up unit
Loading the Rewind Spool on the Media T ake-up Unit
1. When using the Output Stacker , stow the Output Stacker before this procedure. ( → P .225)
Important
• Arrange the Basket Cloth and Basket Rod so they do not interfere with the Media T ake-up Sensor .
• Do not put anything in front of the Media T ake-up Sensor that might interfere with it. This may
impair operation.

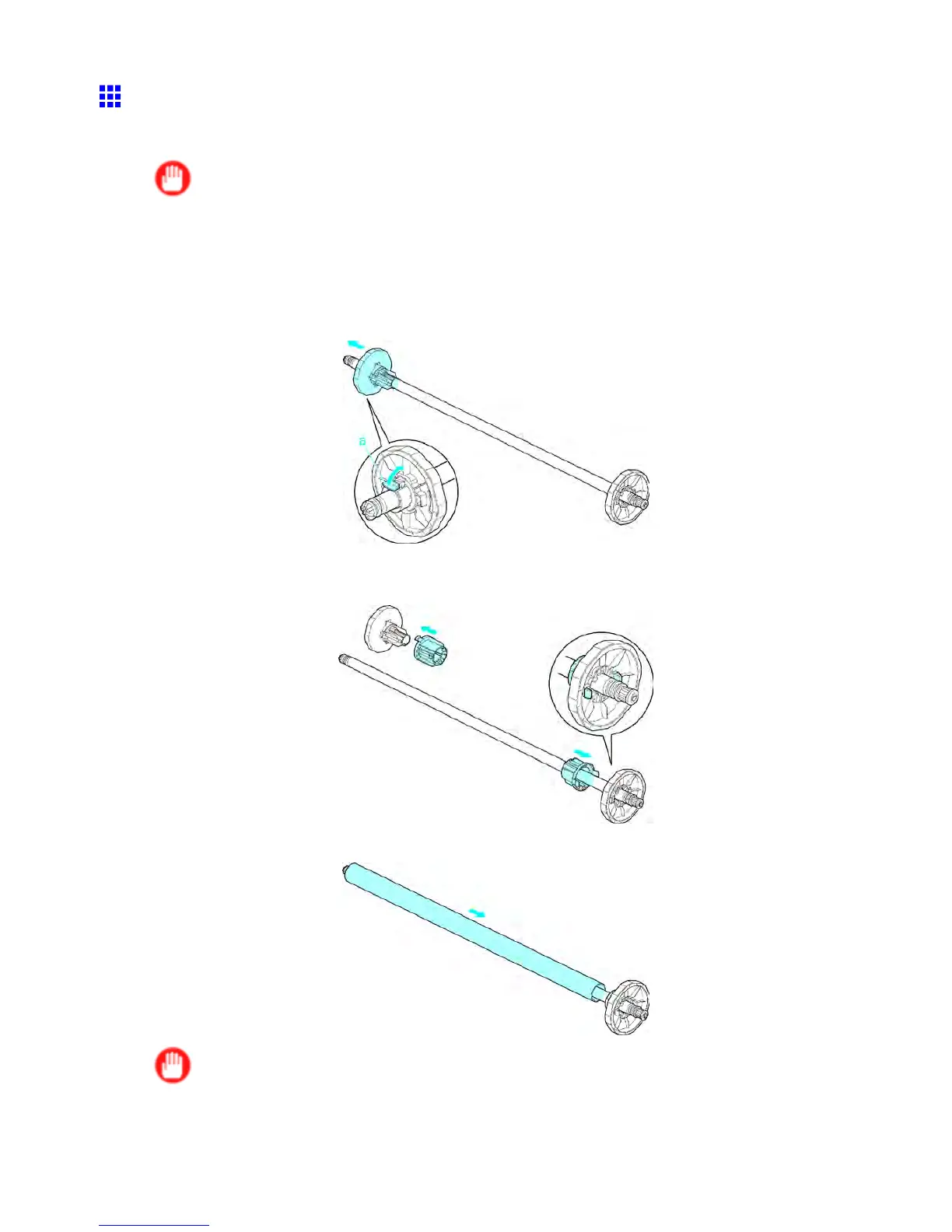

2. Unlock the ange on the left side of the Rewind Spool by lifting the lever (a) from the shaft
side. Remove the ange.
3. When rewinding rolls with 3-inch paper cores, insert the 3-inch Adapter on the anges at both
ends.
4. Insert the paper core, which serves as the spindle for rewinding a roll, on the Rewind Spool .
Important
• On the Rewind Spool , always use a paper core that is the same size as the roll to be rewound.
230 Handling Paper
