Connection Procedure
138

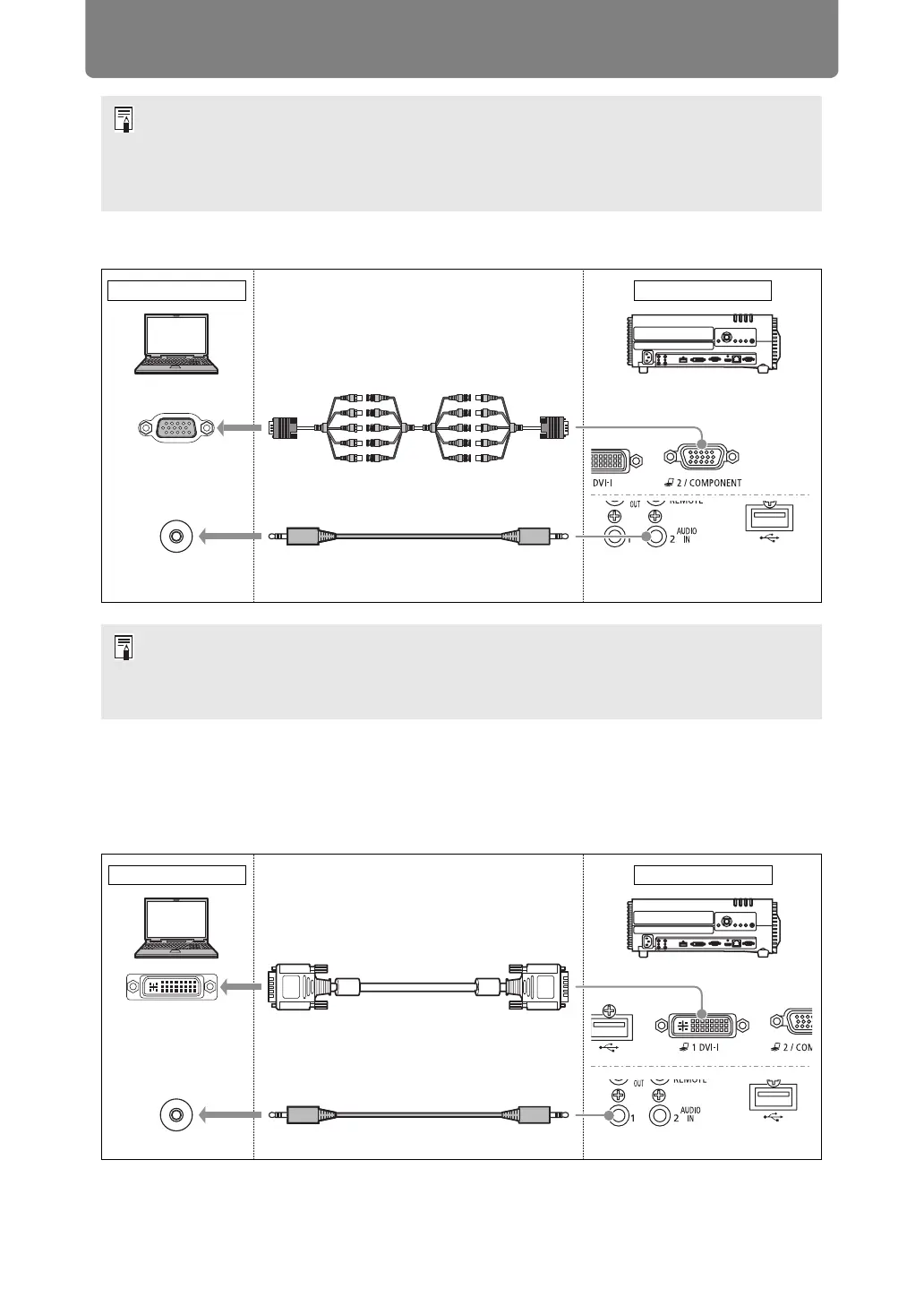

Connecting with a BNC cable (Input signal type: [Analog PC-2] P53)
■ Connecting to DVI Monitor Output Terminal (Digital
Connection)
Connecting with a DVI cable (Input signal type: [Digital PC] P53)
• Use a VGA-DVI-I cable in which all pins are connected. If the cable is a type in which all
pins are not connected, the image may not be correctly displayed.
• Use an audio cable without a built-in resistor. Using an audio cable with a built-in
resistor will reduce the audio volume.
• The AUDIO IN terminal can be changed in the Audio in terminal select screen (P153).
• A signal with a dot clock higher than 162 MHz cannot be projected.
• Use an audio cable without a built-in resistor. Using an audio cable with a built-in
resistor will reduce the audio volume.
• The AUDIO IN terminal can be changed in the Audio in terminal select screen (P153).
Monitor output terminal
(Mini D-sub 15-pin)
AUDIO output terminal
(AUDIO OUT)
Mini D-sub 15-pin -
BNC terminal
converter cable
(not included)
Mini D-sub 15-pin -
BNC terminal
converter cable
(not included)
BNC cable (not included)
When inputting corresponding audio
Audio cable (not included)
To ANALOG PC-2 /
COMPONENT terminal
Computer
Projector
To AUDIO IN terminal 2
Monitor output terminal
(DVI terminal)
AUDIO output terminal
(AUDIO OUT)
When inputting corresponding audio
Audio cable (not included)
DVI cable (not included)
To ANALOG PC-1 / DVI-I terminal
To AUDIO IN terminal 1
Computer
Projector
