Canon WUX450 User Manual

299
Product Specifications
Appendix Other Information

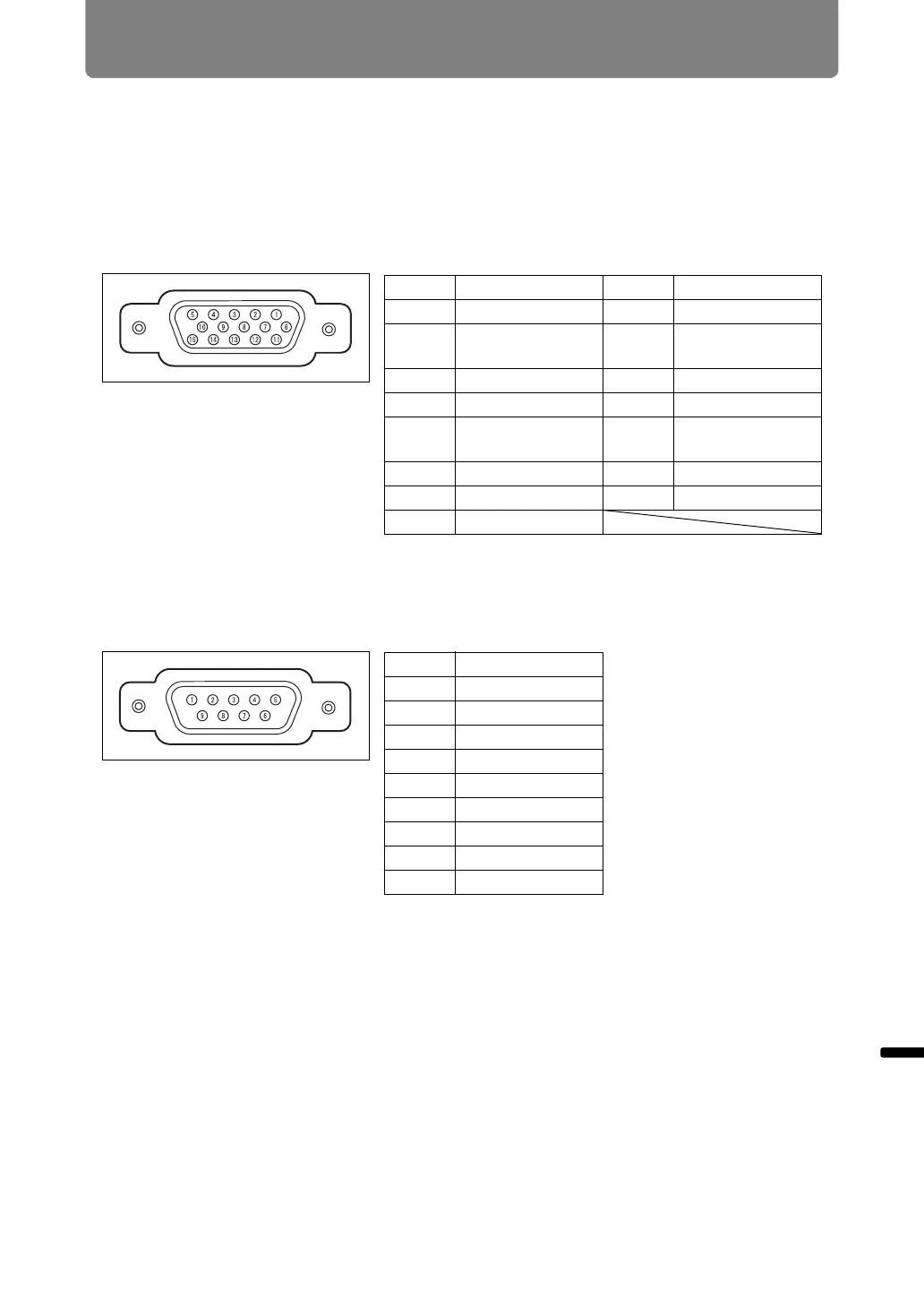

■ ANALOG PC-2 / COMPONENT terminal
This terminal is used as a computer ANALOG PC input or COMPONENT input
terminal. Use a D-sub computer cable.
The terminal specifications for the ANALOG PC input and COMPONENT input are
the same.
Mini D-sub 15-pin
■ Service Port (CONTROL)
Pin assignment
Communication format
Communication mode : RS-232-C, asynchronous, half-duplex communication
Communication speed : 19200bps
Character length : 8 bits
Stop bits : 2 bits
Parity : None
Flow control : None
Pin No. Signal Pin No. Signal
1 R 9 +5 V power
2G 10
Ground
(Vertical sync.)
3 B 11 Ground
4OPEN 12DDC data
5
Ground
(Horizontal sync.)
13 Horizontal sync.
6 Ground (R) 14 Vertical sync.
7 Ground (G) 15 DDC clock
8 Ground (B)
Pin No. Signal
1OPEN
2RxD
3TxD
4OPEN
5GND
6OPEN
7 Internal pull-up
8OPEN
9OPEN
