Part Names
Before Use

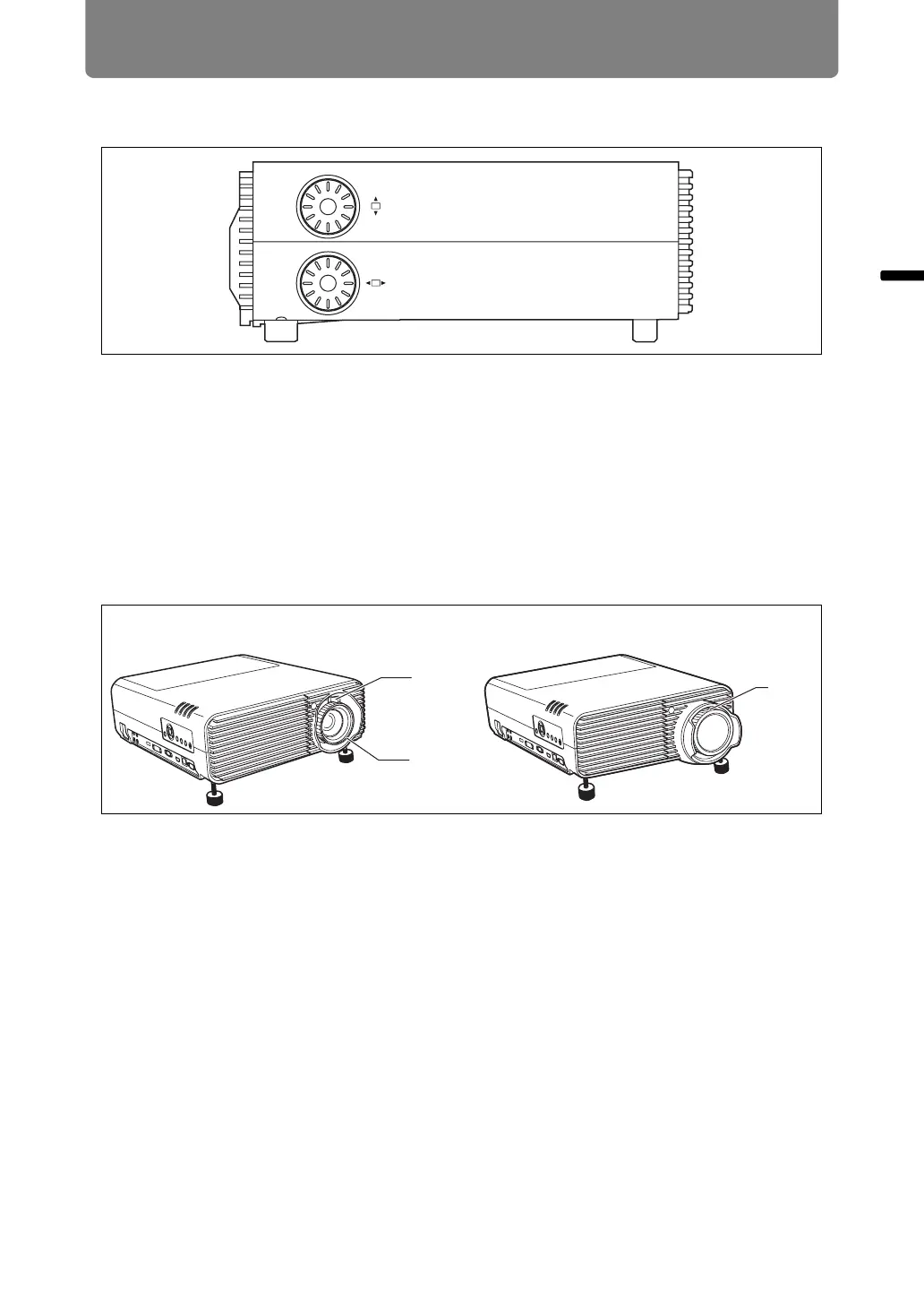

Lens Shift Control
(1) Vertical lens shift dial
Slides the lens up or down for vertical image adjustment.
(2) Horizontal lens shift dial
Slides the lens left or right for horizontal image adjustment. For details on lens
shift, refer to “Lens Shift Function” (P134).
Projection Lens
(1) Optical zoom adjustment (WUX450/WX520)
Move the lever to resize the image. (P57)
(2) Focus adjustment
Turn the focus ring to adjust image focus. (P59)
(1)
(2)
(1)
(2)
WUX450/WX520 WUX400ST/WX450ST
