Part Names
38
Projector (WUX400ST/WX450ST)

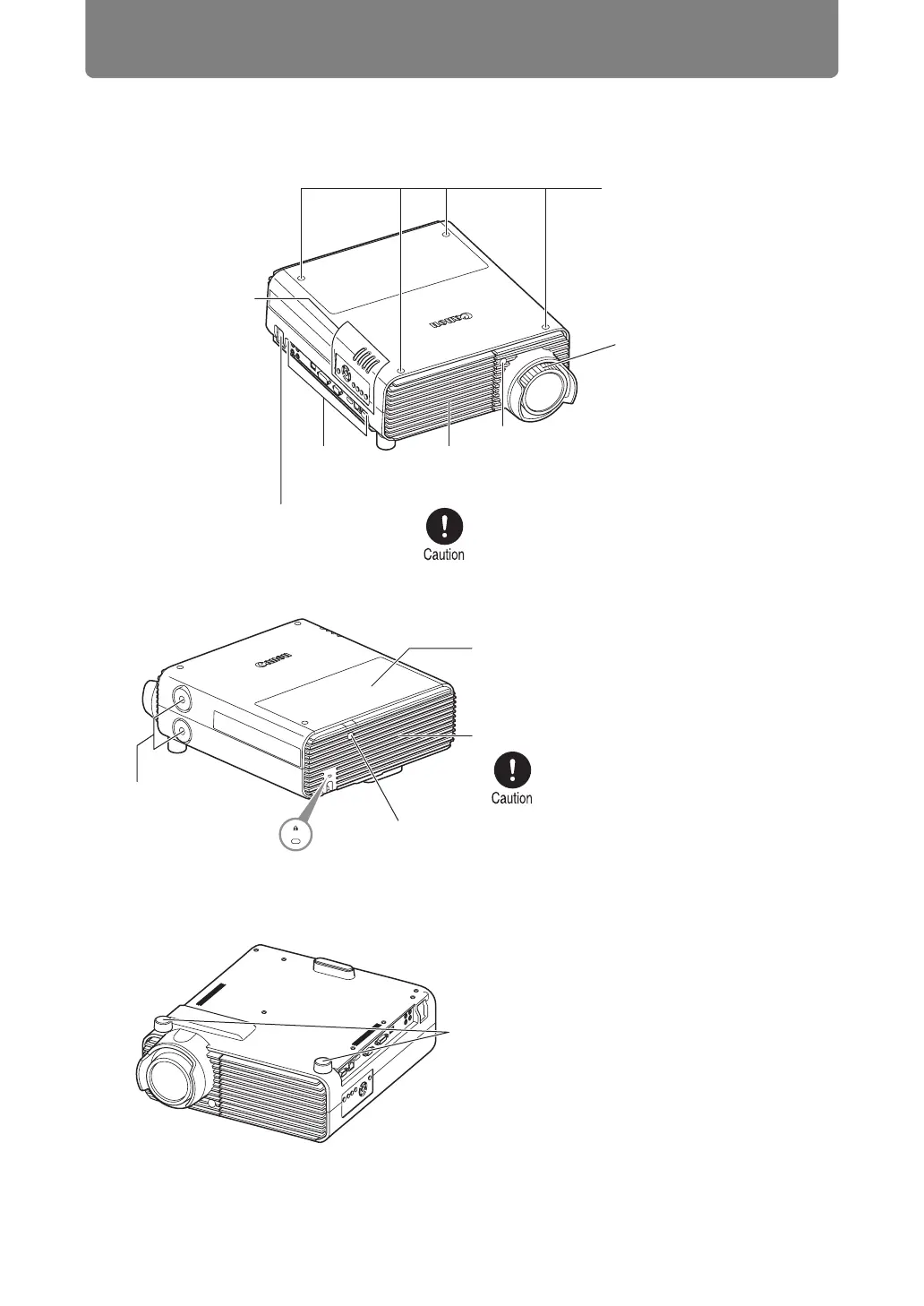

■ Front Side
■ Rear Side
■ Bottom Side
Terminals and
connectors (P44)
Projection lens (P45)
Power cord connector
(P143)
Side control
(P42)
Air intake vent
Air filter (P199)
Hole caps (P131)
Attach option feet (sold
separately). For
instructions on removing
the hole caps, refer to
“Attaching Option Feet (RS-
FT01, Sold Separately)”.
Infrared remote receiver (P35)
Do not block the air intake.
Doing so may cause a malfunction.
Exhaust vent
Infrared remote receiver (P35)
Lamp cover
Lens shift
side control
(P45)
Anti-theft lock hole
An anti-theft wire cable (not included) can be connected.
Do not block the air exhaust.
Doing so may cause a
malfunction.
Adjustable feet (P130)
