Part Names
44

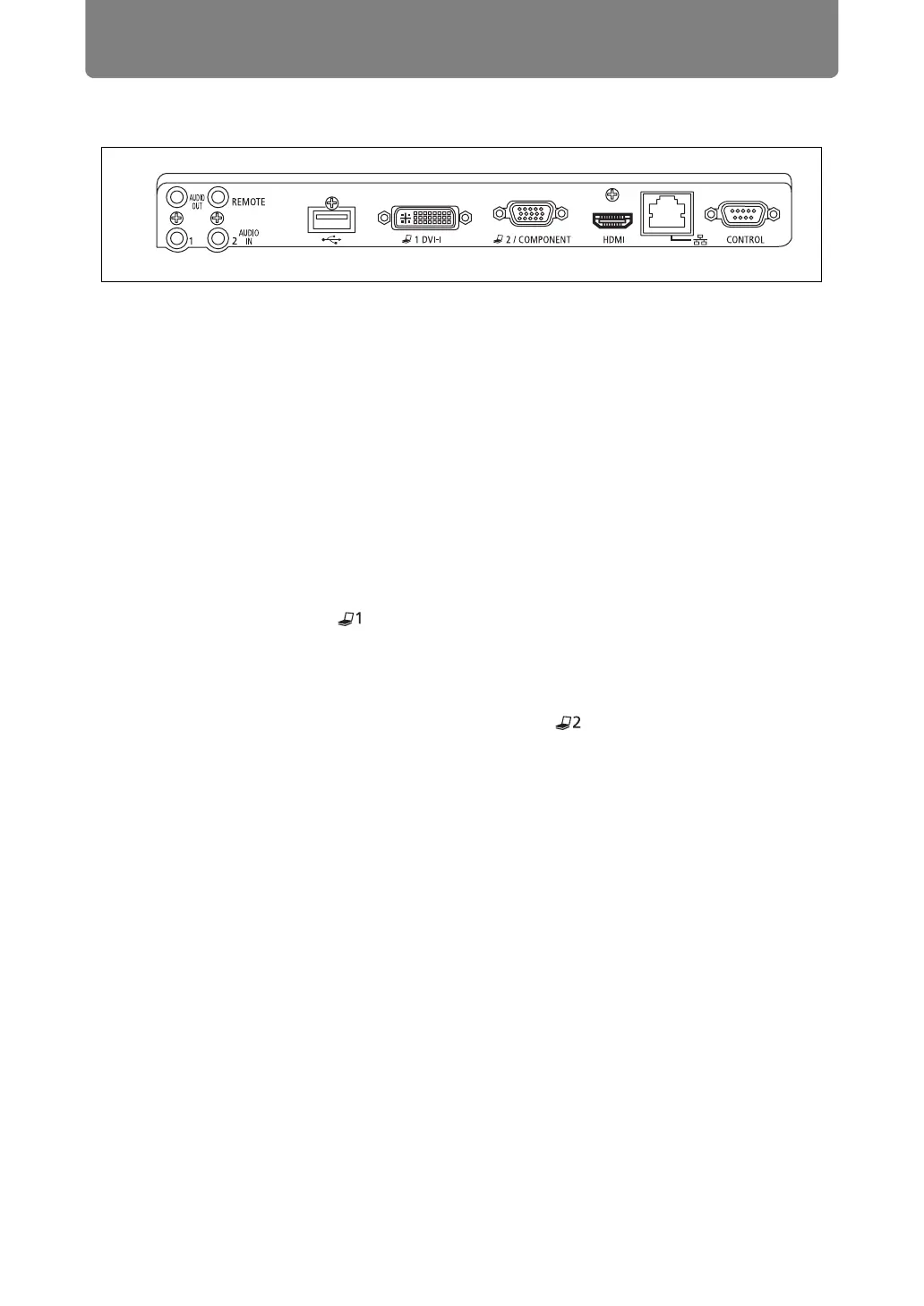

Input Terminal
(1) AUDIO OUT terminal (AUDIO OUT) (P139, P142)
Outputs the audio to external AV equipment. This outputs the audio signal that
corresponds to the projected image signal.
(2) AUDIO IN terminal (AUDIO IN) (P137, P138, P141)
Receives the audio signal input for 2 kinds of image input other than HDMI.
The internal speaker outputs the audio for the selected image signal.
(3) Terminal for wired remote control (REMOTE) (P36)
This terminal is used to connect the remote control using a cable.
(4) USB port (P79)
Connects a USB flash drive. Used for projection of images on a USB flash
drive, or for firmware updates.
(5) DVI-I input terminal ( DVI-I) (P138)
Connects the external monitor output from a computer.
Receives analog and digital PC signals (Analog PC-1 and Digital PC,
respectively).
(6) ANALOG PC / COMPONENT input terminal ( / COMPONENT)
(P137, P141)
Receives the analog PC signal (Analog PC-2).
A component cable can be used to receive the component image signal
(Component).
(7) HDMI input terminal (HDMI) (P139)
Receives digital video signals (HDMI).
Carries both video and audio signals across a single cable.
(8) LAN port (P168)
Connects the LAN cable (shielded twisted pair).
Used to connect the projector to a network.
(9) Service port (CONTROL)
It is not used during ordinary use.
(2)
(1) (3)
(4) (5) (6) (7) (8) (9)
To Next Page
