Connection Procedure

142

■ Outputting Audio to Speakers

It is possible to output audio from the projected images to AV equipment or

amplified speakers.

Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor

will reduce the audio volume.

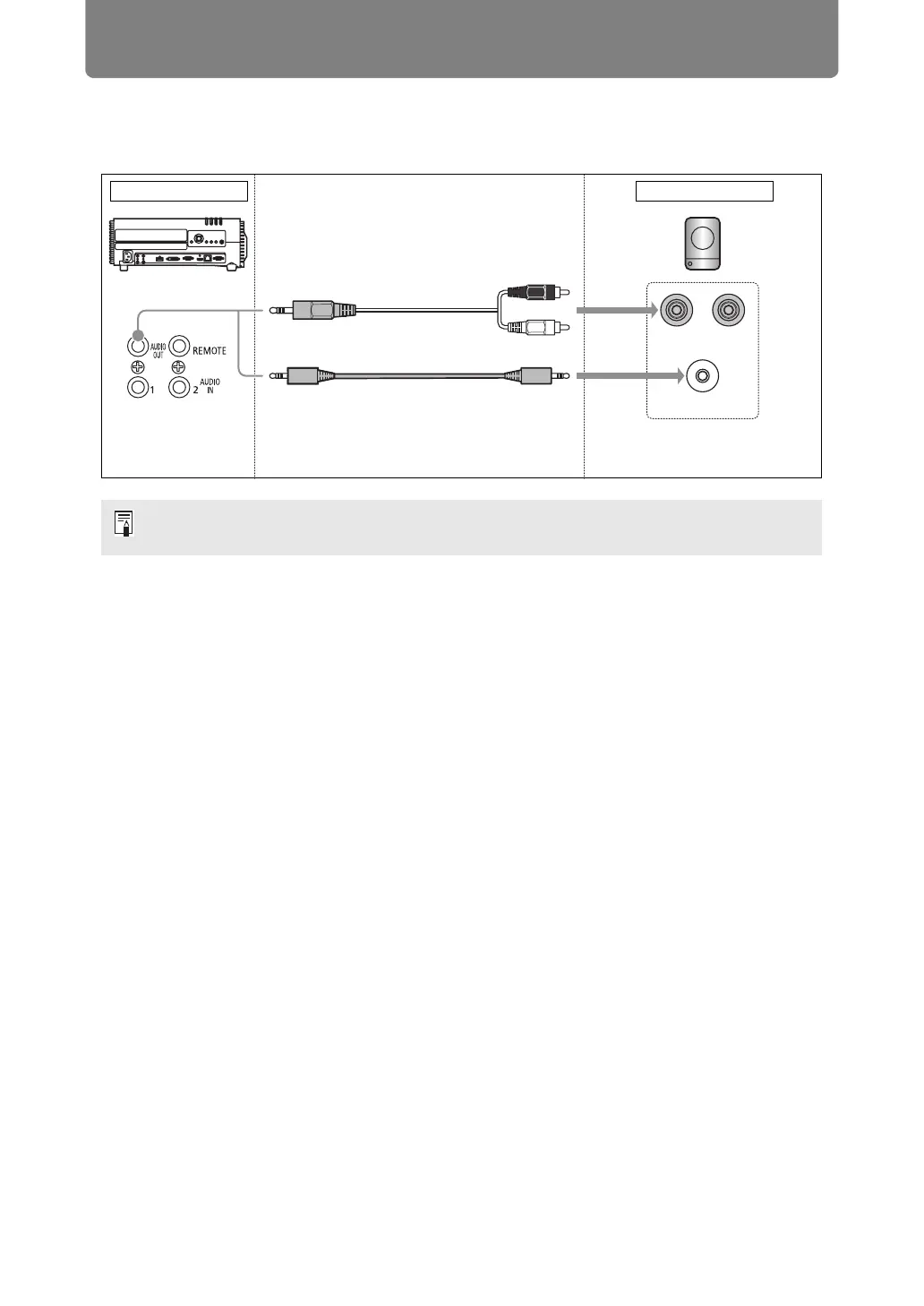

To AUDIO OUT

terminal

Audio cable (not included)

RCA terminal

Mini jack

AUDIO IN terminal

(AUDIO IN)

Projector

Speaker
