Using the Projector in Direct Mode

In this mode, one computer is connected to one projector over the network.

Procedure

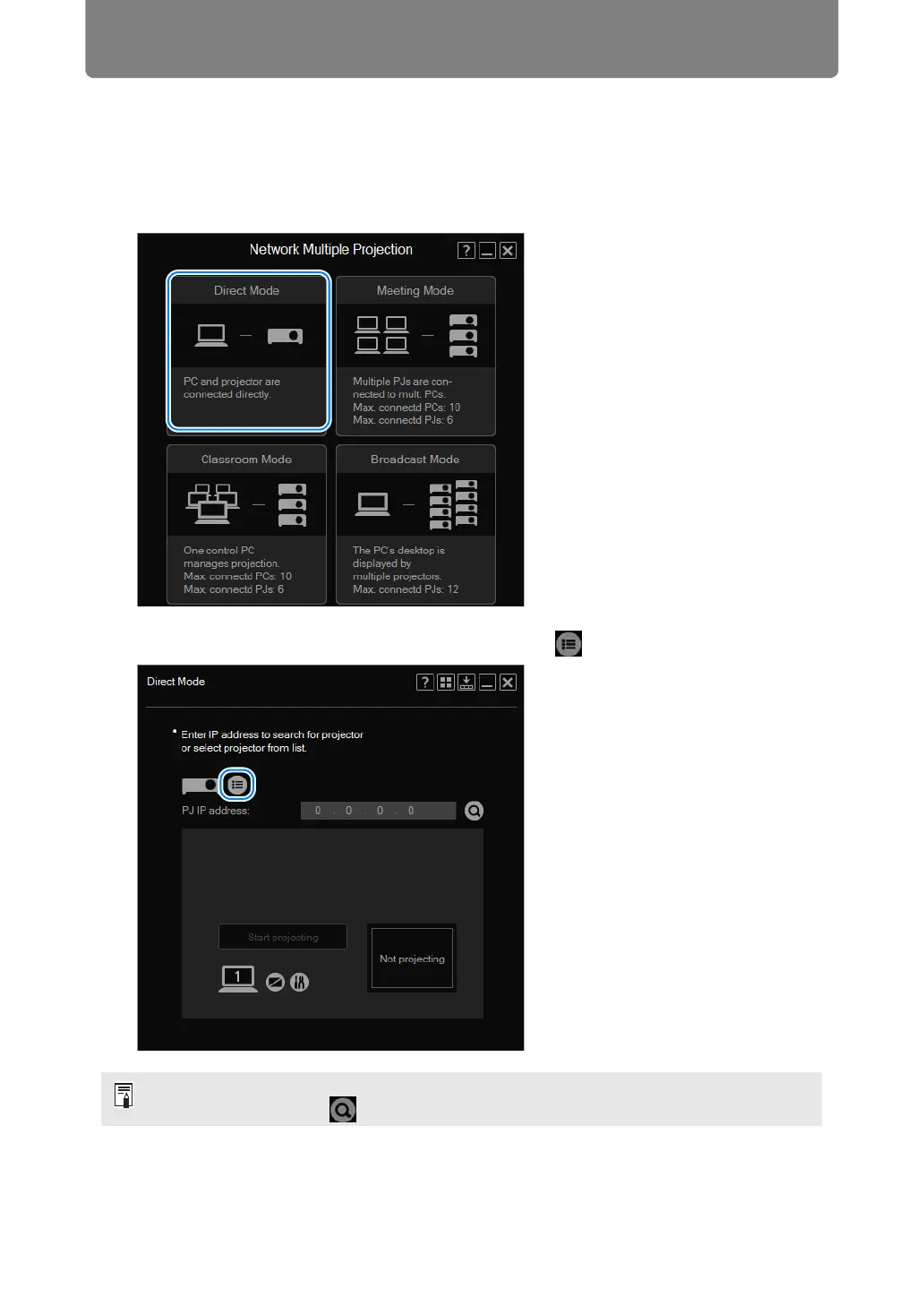

1 In the mode selection menu, select [Direct Mode].

2 The Direct Mode window is displayed. Click .

To connect to projectors in another subnet, enter the projector’s IP address in the [PJ IP

address] field and click .
