Table 2-11 Icons description
Icon Name Function
STATUS Status indicator light
The blue light is on when the device
is working properly.
HDD HDD status indicator light
The blue light is on when the HDD
malfunctions.
NET Network status indicator light
The blue light is on when the
network connection is abnormal.
POWER Power status indicator light
The blue light is on when the power
connection is normal.
USB 2.0 port
Connect to peripheral USB 2.0
storage device, mouse, burner and
more.
2.1.13 NVR608-64-4KS2/NVR608-128-4KS2/NVR608H-
XI/NVR608RH-XI Series
The NVR608-64-4KS2/NVR608-128-4KS2/NVR608H-32-XI/NVR608H-64-XI/NVR608H-128-
XI/NVR608RH-32-XI/NVR608RH-64-XI/NVR608RH-128-XI front panel is shown as below.

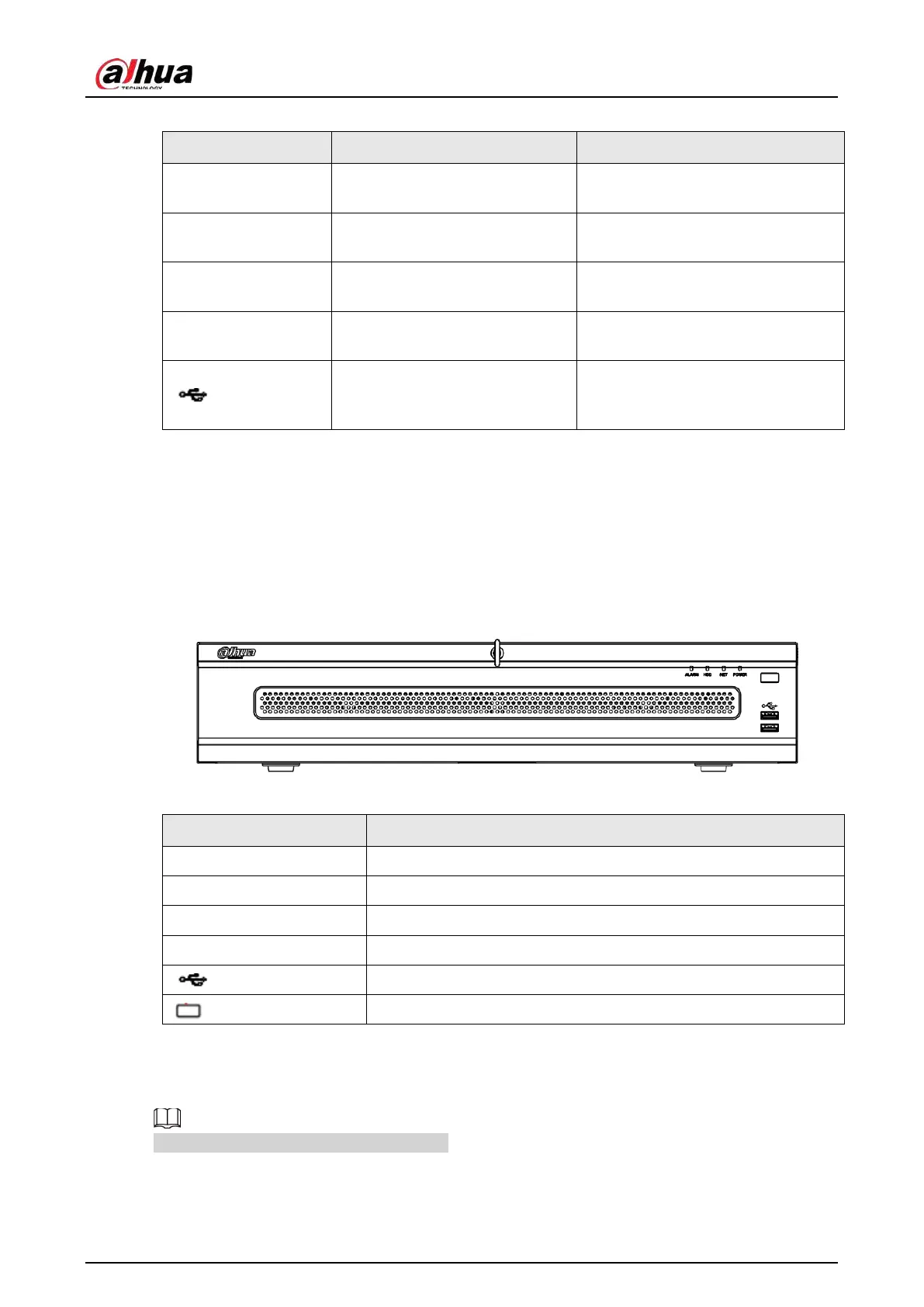

Figure 2-21 Front panel
Table 2-12 Front panel description
Icon Name
ALARM Alarm indicator light
HDD HDD status indicator light
NET Network status indicator light
POWER Power status indicator light
USB 2.0 port
Power on-off button
2.1.14 NVR616-4KS2 Series
The following figures are for reference only.
For the product of LCD, the front panel of NVR616-4KS2 is shown as below.
