User's Manual
34
Port Name Connection Function
VGA VGA video output port
VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.
Power input port Input 12 VDC/2 A.
WPS/RESET Reset/WPS function
Device Wi-Fi reset and WPS function button:
●
Hold down this button for 5 seconds and
above to restore Wi-Fi AP to defaults.
●
Press this button for less than 2 seconds,
and then press the WPS button of Wi-Fi
IPC, the device and Wi-Fi IPC can be
connected.
2.2.11 NVR21HS-W-4KS2Series

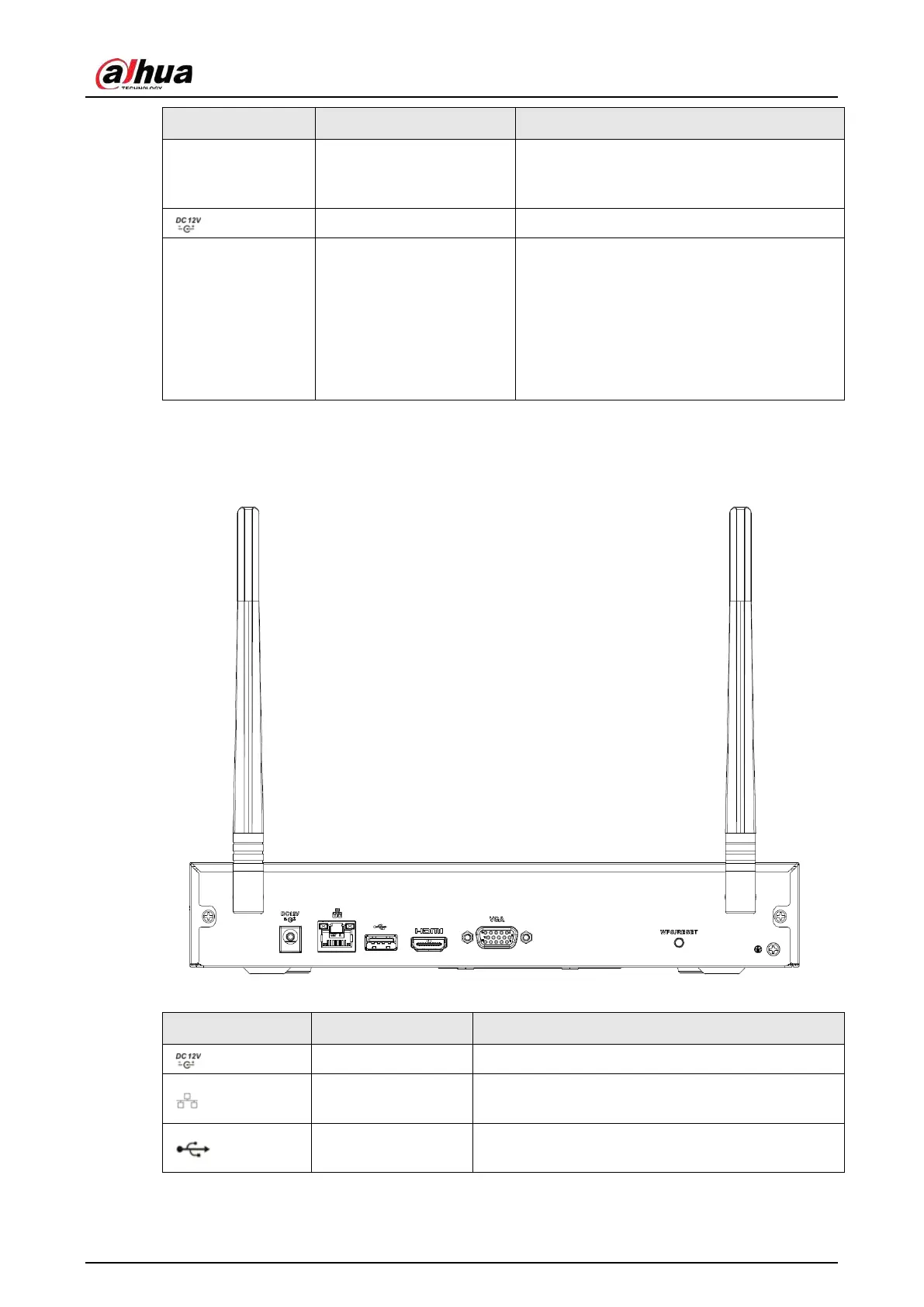

Figure 2-56 Rear panel
Table 2-25 Ports
Icon Name Function
Power input socket Power socket. Input 12 VDC/2 A.
Network port
10/100 Mbps self-adaptive Ethernet port. Connect
to the network cable.
USB 2.0 port
USB 2.0 port. Connect to mouse, USB storage
device, and more.
