Port Name Connection Function
PoE PORTS PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to
provide power to the network camera.
2.2.4 NVR52-4KS2/NVR52-8P-4KS2/NVR52-16P-4KS2/NVR52-24P-
4KS2/NVR52-8P-4KS2E/NVR52-16P-4KS2E Series

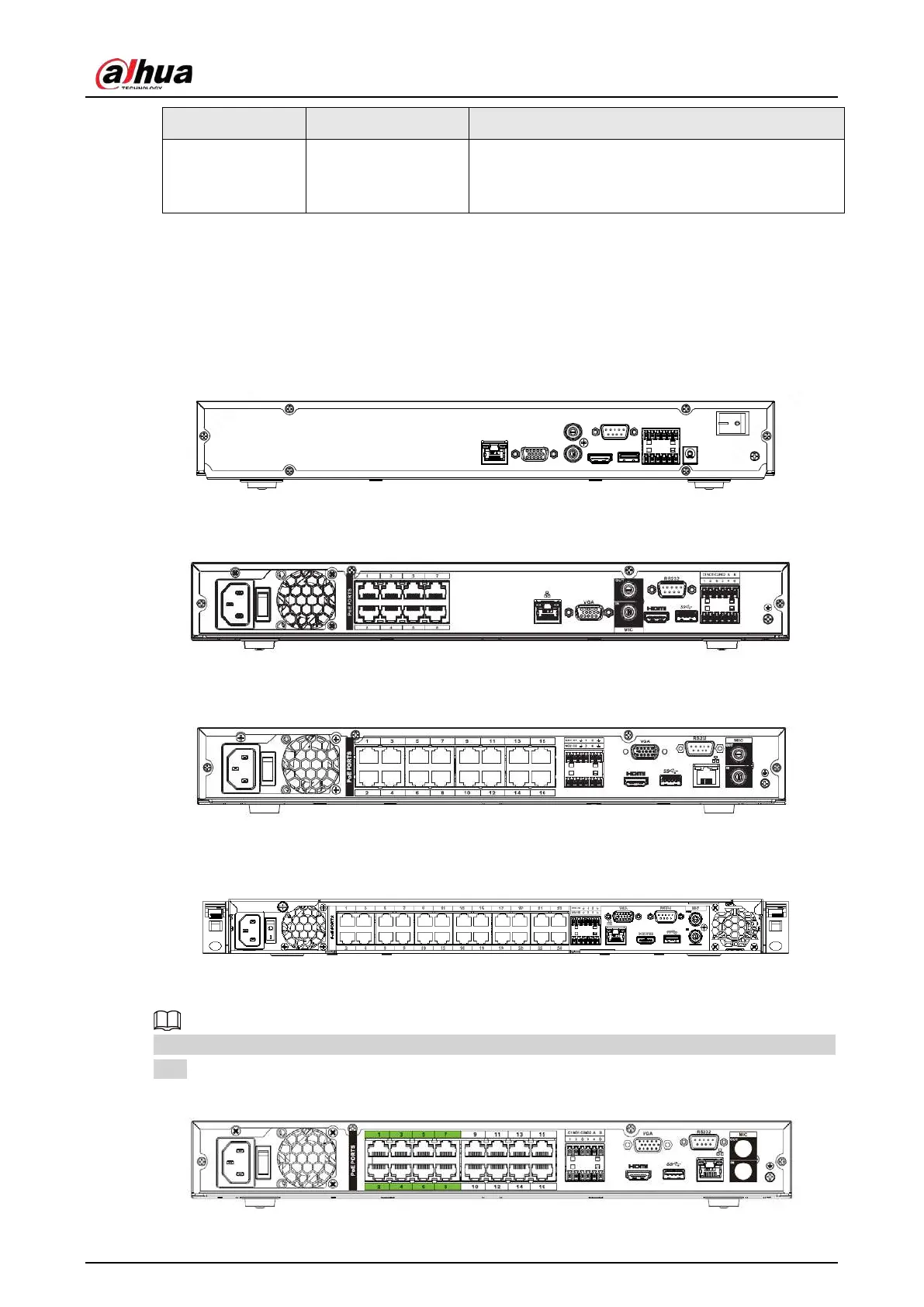

The NVR52-4KS2 series rear panel is shown as below.
Figure 2-34 Rear panel
The NVR52-8P-4KS2 series rear panel is shown as below.
Figure 2-35 Rear panel
The NVR52-16P-4KS2 series rear panel is shown as below.
Figure 2-36 Rear panel
The NVR52-24P-4KS2 series rear panel is shown as below.
Figure 2-37 Rear panel
The NVR52-8P-4KS2E/52-16P-4KS2E series rear panel is shown as below.
The following figure takes NVR52-16P-4KS2E series as an example. NVR52-8P-4KS2E has 8 ePoE ports
only.
Figure 2-38 Rear panel
