User's Manual
27
Port Name Connection Function
MIC IN Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices
such as microphone, pickup.
MIC OUT Audio output port
Audio output port. It is to output the analog
audio signal to the devices such as the sound
box.
●
Bidirectional talk output.
●
Audio output on 1-window video monitor.
●
Audio output on 1-window video playback.
PoE PORTS PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to
provide power to the network camera.
2.2.7 NVR42-4KS2/NVR42-P-4KS2/NVR42-8P-4KS2/NVR42-16P-
4KS2/NVR42-4KS2/L/NVR42-P-4KS2/L/NVR42-8P-4KS2/L/NVR42-
16P-4KS2/L Series

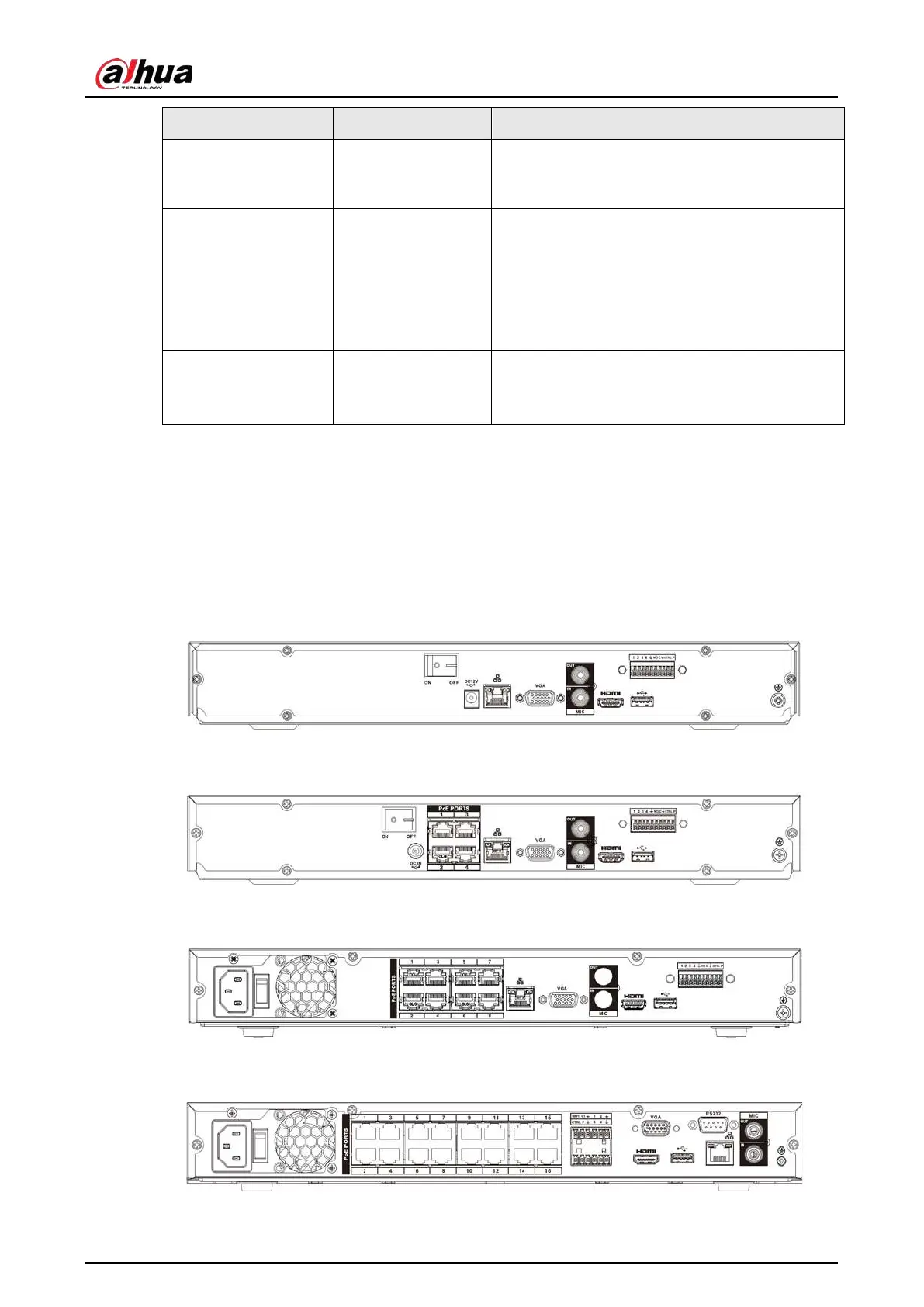

The NVR42-4KS2/NVR42-4KS2/L series rear panel is shown as below.
Figure 2-47 Rear panel
The NVR42-P-4KS2/NVR42-P-4KS2/L series rear panel is shown as below.
Figure 2-48 Rear panel
The NVR42-8P-4KS2/NVR42-8P-4KS2/L series rear panel is shown as below.
Figure 2-49 Rear panel
The NVR42-16P-4KS2/NVR42-16P-4KS2/L series rear panel is shown as below.
Figure 2-50 Rear panel
