6-24 Removal and Replacement
Printhead Fan
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (page 6-15) and the Swingarm Cover (page 6-13).
4. Unplug the fan from the main control board.

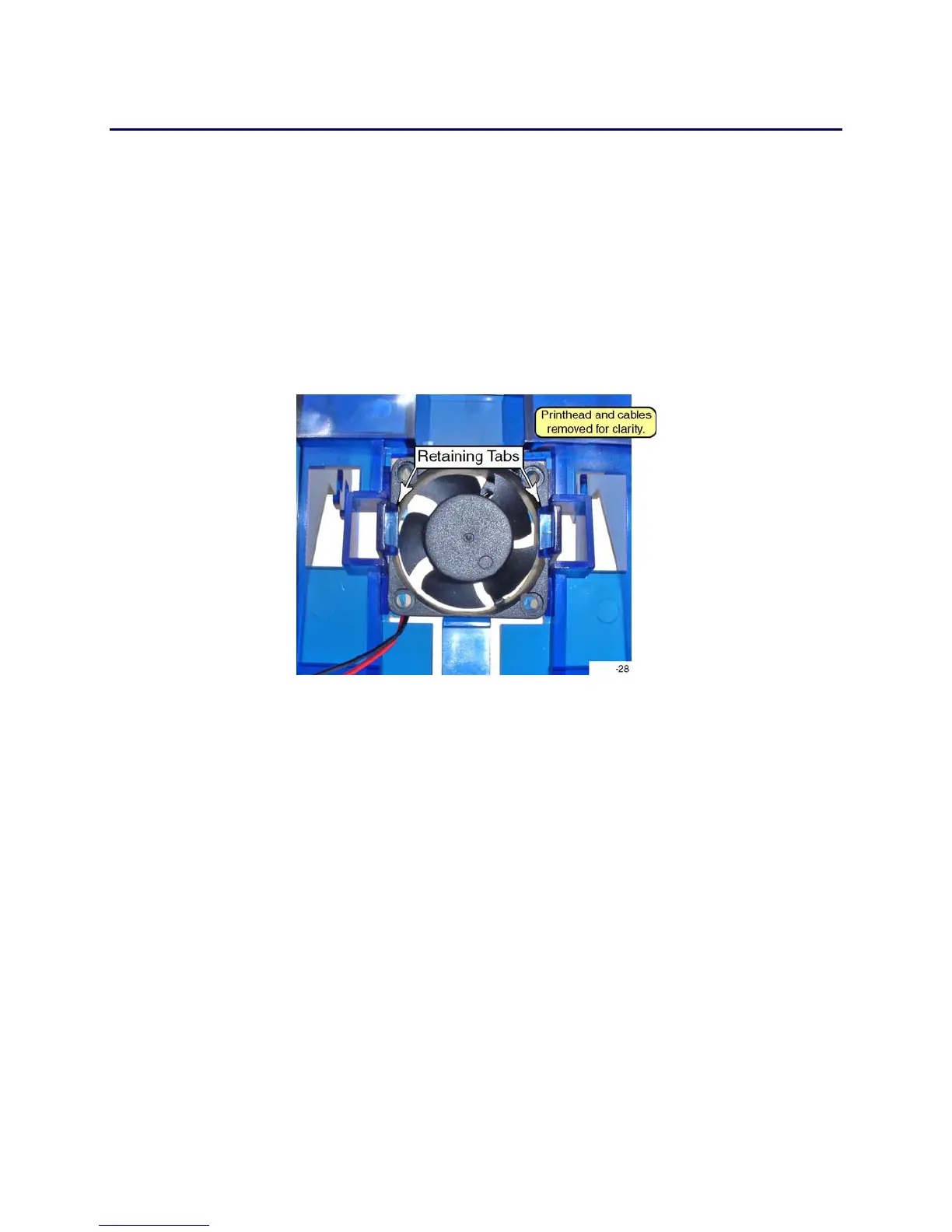

5. To remove the fan, press in on the two retaining tabs and lift the fan out from
the top of the swingarm.
 Note that the label on the fan is facing toward the inside of the printer.
