CP80 and CP80 Plus Service Manual 6-35

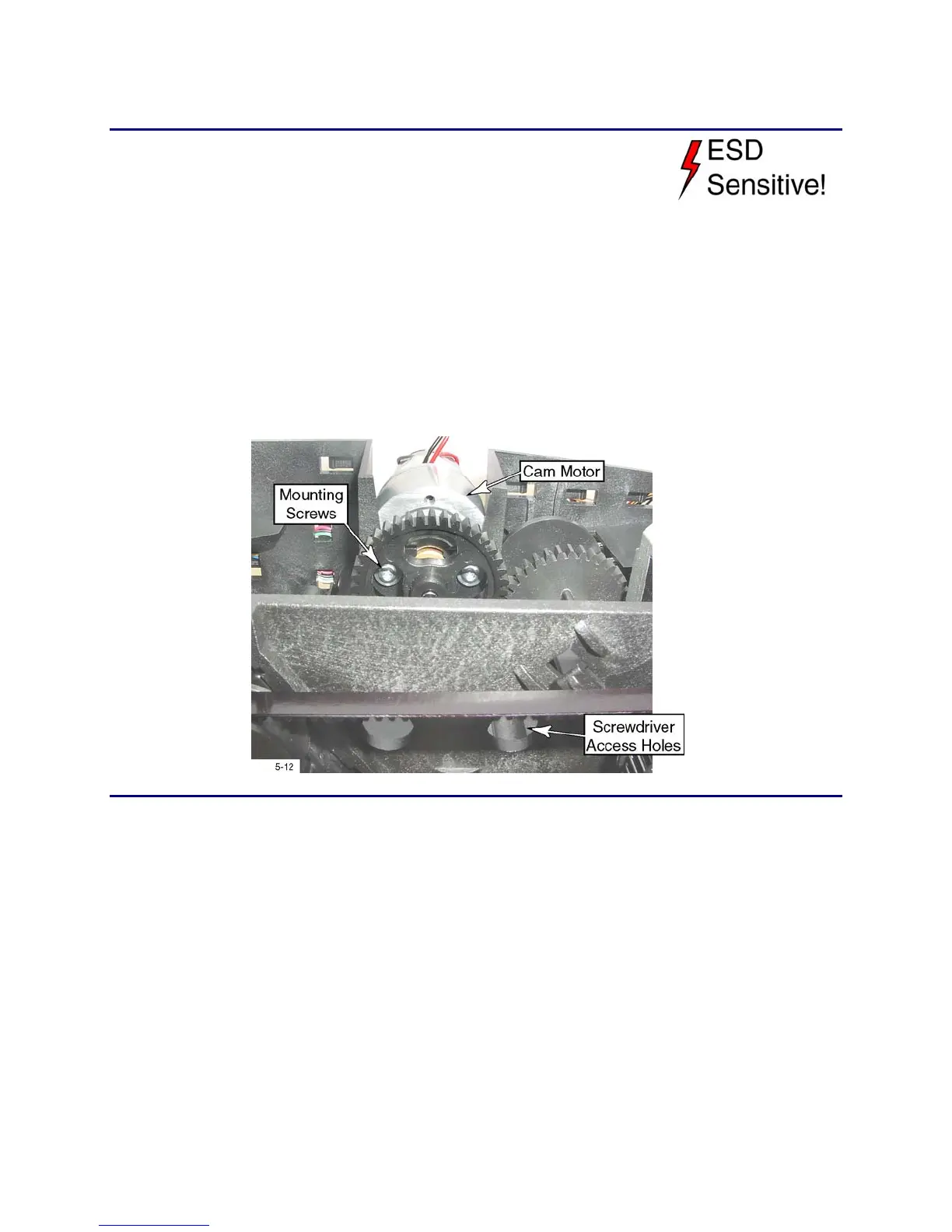

Cam Motor
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (page 6-15).
4. Remove the
Upper Printer Assembly from the interstage platform (page 6-
38).
5. Rotate the motor gear until the mounting screws are accessible through the
slots.
6. Loosen the two mounting screws, and lift the motor out of the chassis.
(Unless necessary, don’t remove the screws as they can be difficult to
replace.)
Follow-up Procedure
• Tighten the mounting screws to 8 in-lbs.
• Refer to the Print Engine Cable Connection Diagram for replacement details.
• Run the Printhead Cam Test in Diagnostics to verify that the motor is functional.
