CP80 and CP80 Plus Service Manual 6-117

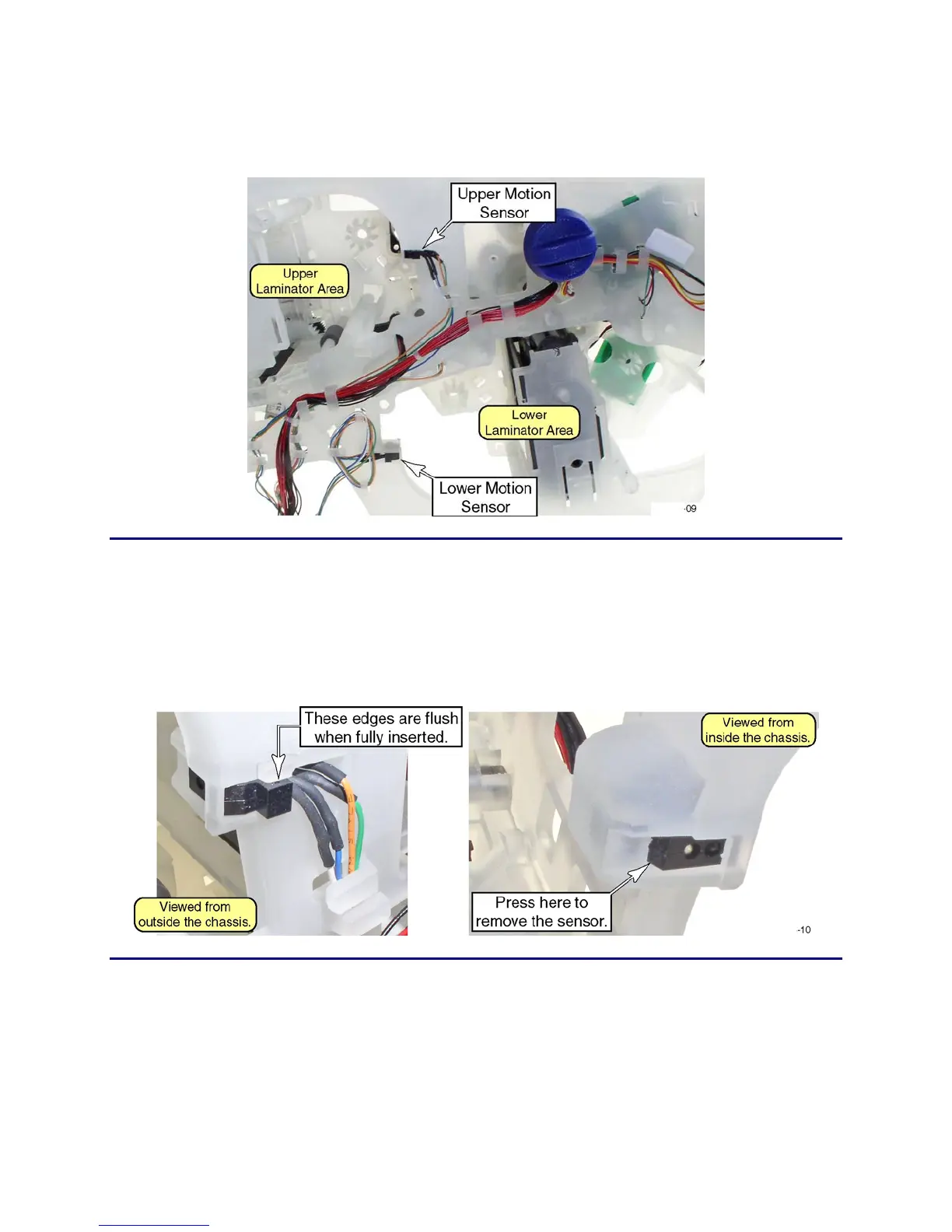

Foil Motion Sensors
These sensors are located next to the foil cartridge cutouts. The same procedure
is used for both sensors.
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the
Main Enclosure (page 6-15).
3. Disconnect the sensor from the laminator control board.
4. Press against the inside corner of the sensor to remove it.
Replacement Notes
• Make sure the sensor is fully seated in position. The small tab on the chassis
should be flush with the edge of the sensor.
• Refer to the Laminator Front Wire Routing Diagram and Laminator Cable
Connection Diagram for replacement details.
• Print several laminate test cards to verify that the sensor is functional.
