CP80 and CP80 Plus Service Manual 6-115
Upper Foil Index Sensor
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the
Main Enclosure (page 6-15).
3. Remove the
Upper Printer Assembly (page 6-38).
4. Disconnect the sensor cable from the laminator control board.

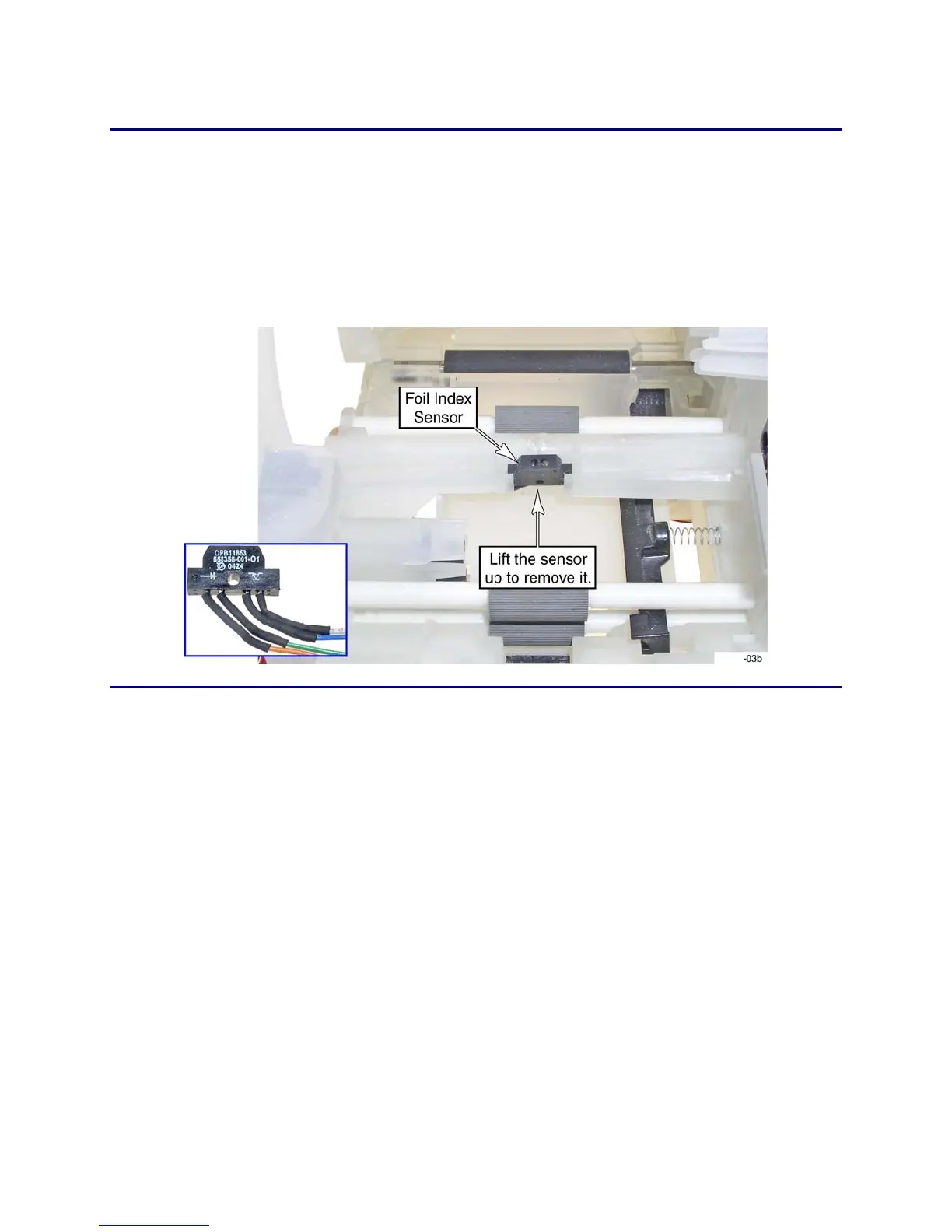

5. Gently pry against the bottom of the sensor body to free it from the chassis.
Replacement Notes
• Make sure the sensor is fully seated and locked into position.
• Refer to the Laminator Front Wire Routing Diagram and Laminator Cable
Connection Diagram for replacement details.
• Print several laminate test cards to verify that the sensor is functional.
