CP80 and CP80 Plus Service Manual 6-57
Cleaning Drive Roller
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure and card hopper (page 6-15).
4. Remove the
Transport Timing Belt (page 6-47).
5. Remove the cleaning rocker assembly.

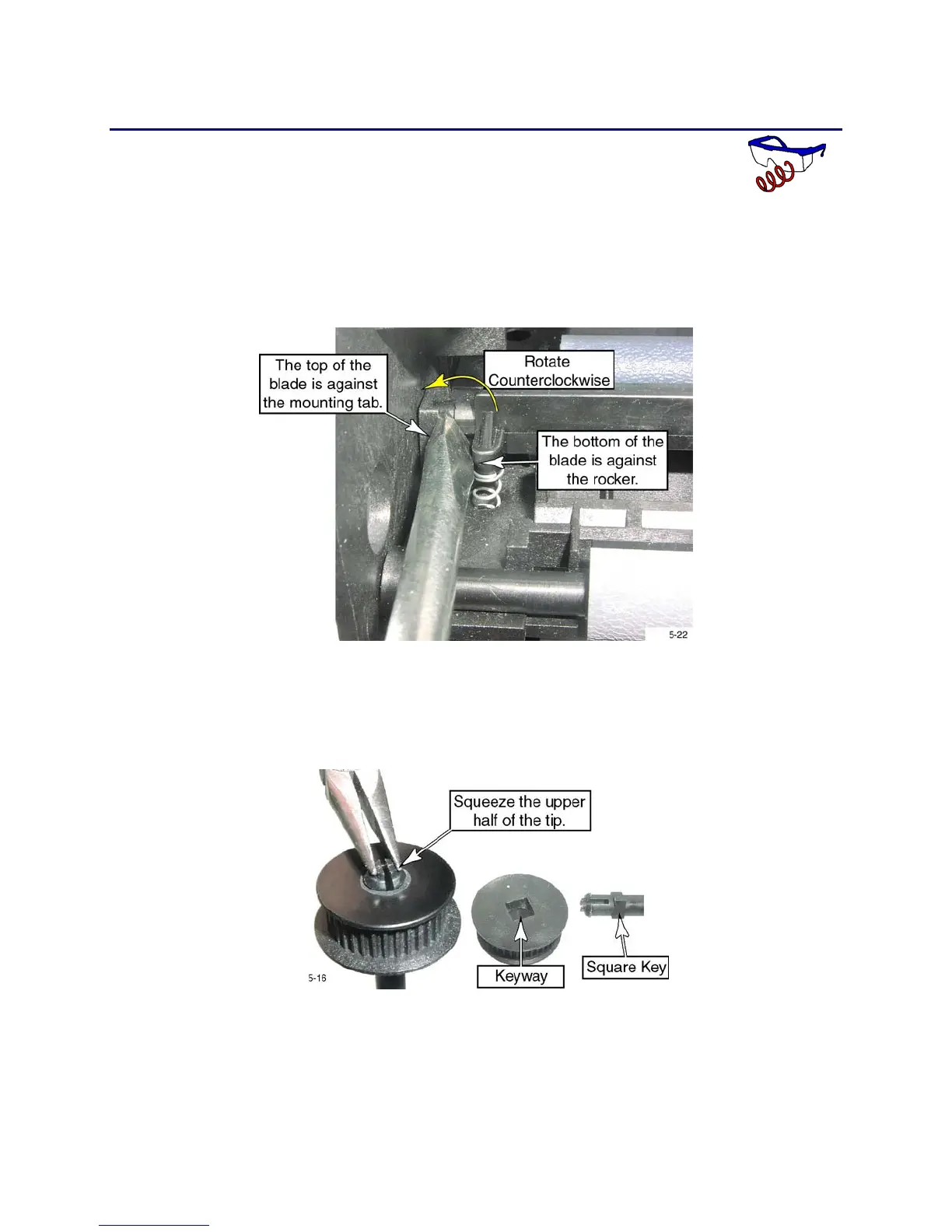

6. Remove the pulley from the shaft by squeezing the end of the shaft, and
slipping the pulley off.
 The pulley's flange is permanently adhered to the pulley. Do not try to
remove the flange.
