6-36 Removal and Replacement
Ribbon Motor and Gear
Removal Procedure

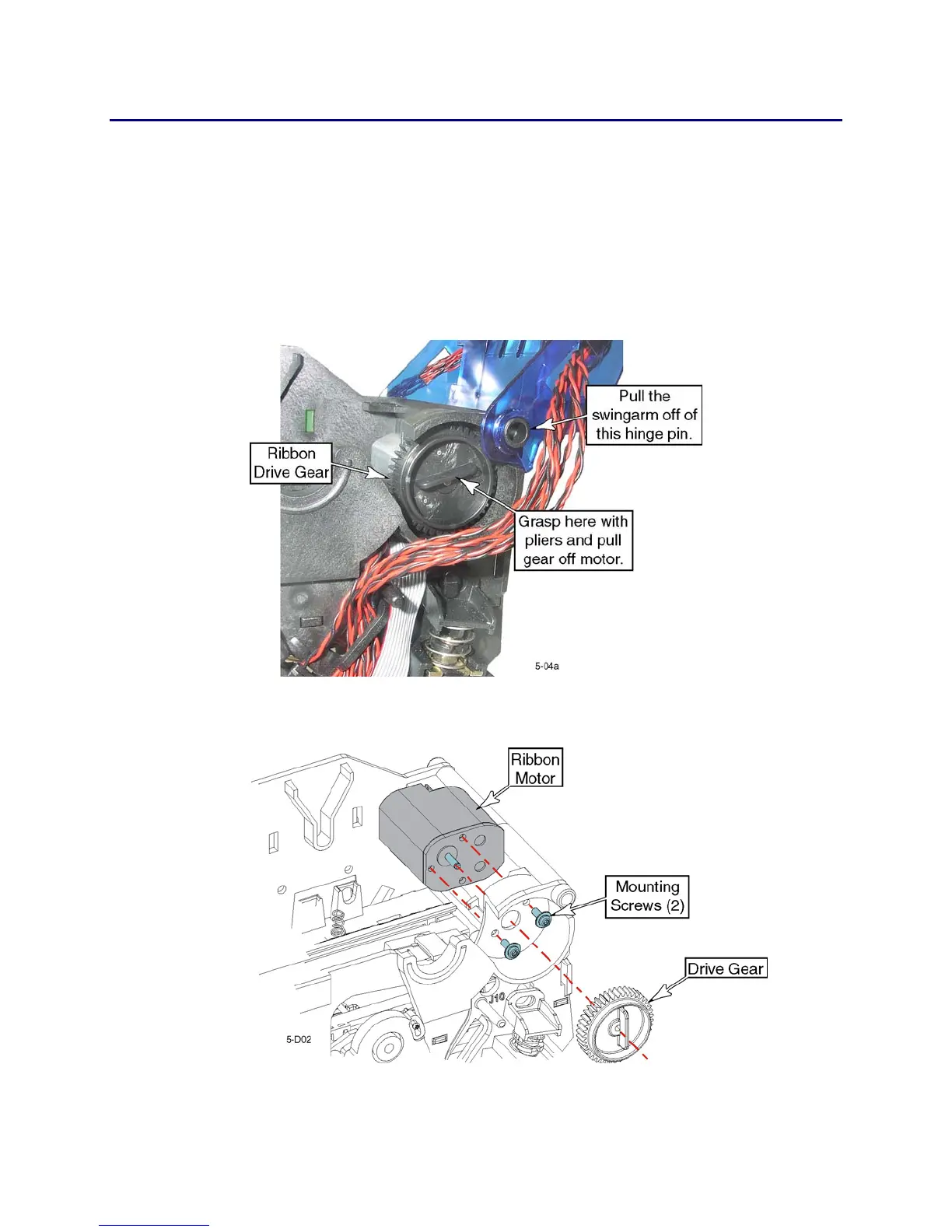

1. Turn off the printer and unplug the power cord.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (page 6-15).
4. Unhinge the swingarm by pulling back on the hinge tab.
5. Using pliers, pull the gear off the motor shaft. (During replacement, make
sure to line up the shaft flats.)
6. Remove the two screws that secure the motor to the transport chassis, and
remove the motor.
