6-114 Removal and Replacement
Card Registration Sensor
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the
Main Enclosure (page 6-15).
3. Remove the
Upper Printer Assembly (page 6-38).
4. Disconnect the sensor cable from the laminator control board.

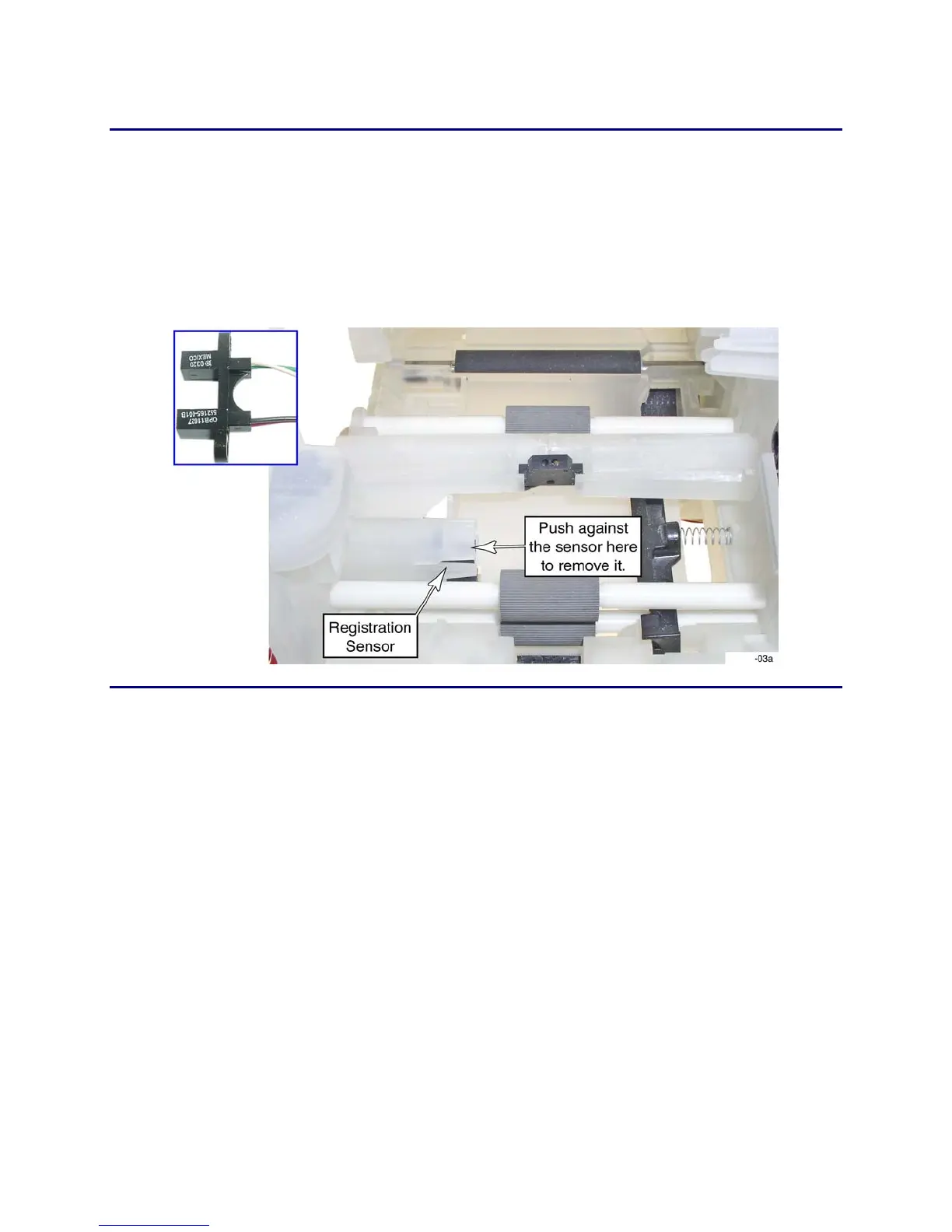

5. Gently push against the tip of the sensor to free it from the chassis.
Replacement Notes
• When pushing the sensor back into position, use a blunt tool and push only on
the top tab, bottom tab, or the center of the body. Do not push against the wire
entry points or crush the wires.
• Make sure the sensor is fully seated. The tip of the sensor should be flush with
the edge of the chassis.
• Refer to the Laminator Front Wire Routing Diagram and Laminator Cable
Connection Diagram for replacement details.
• Print several laminate test cards to verify that the sensor is functional.
