CP80 and CP80 Plus Service Manual 6-103
Intermediate Transport Rollers and Card Guide
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the
Main Enclosure (page 6-15) and the Upper Printer Assembly
(page
6-38).
3. Remove the
Upper Foil Drive Assembly (page 6-126).

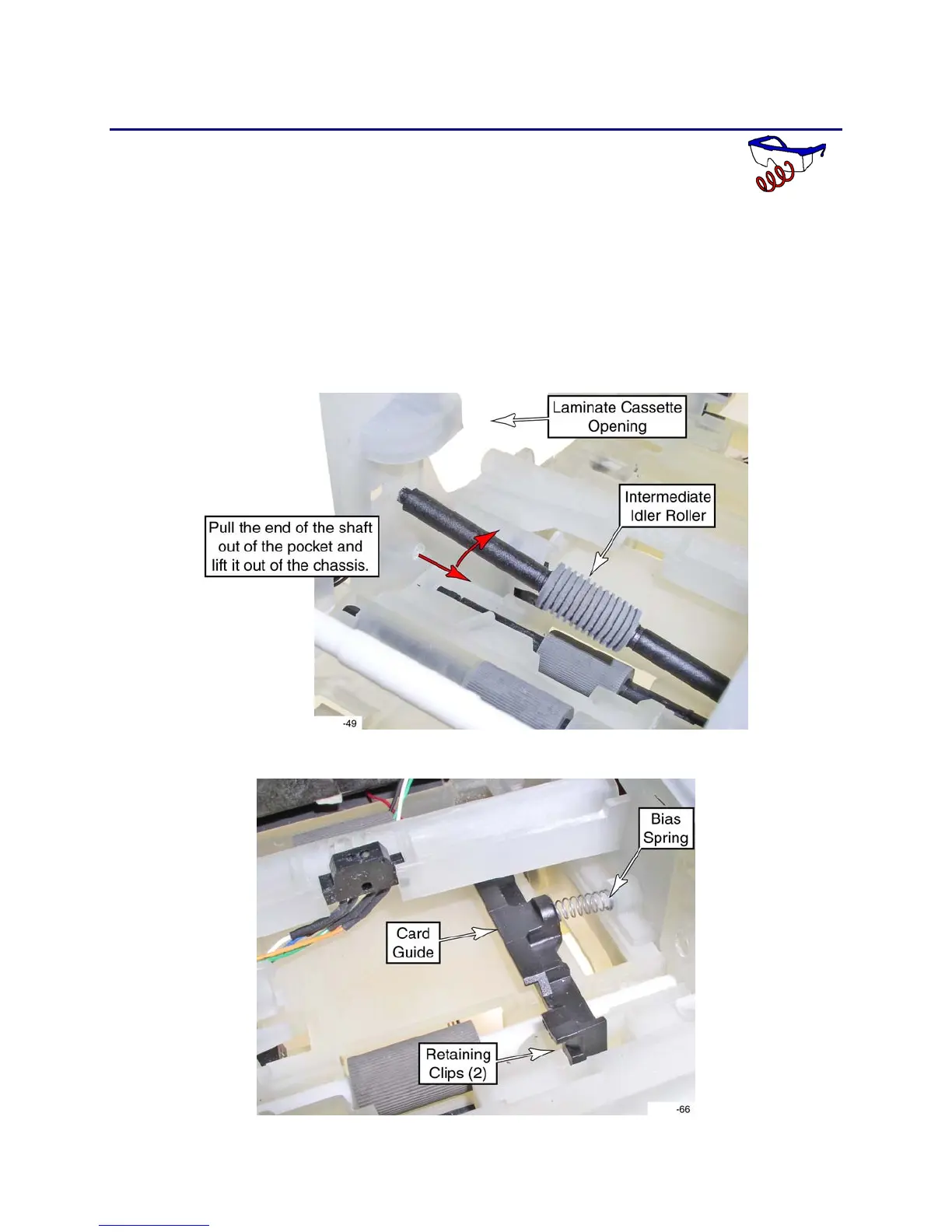

4. Remove the intermediate idler roller:
A. Simultaneously pull the shaft to the right and the chassis wall toward the
left (as viewed in the photograph).
B. When the tip of the shaft clears the pocket in the chassis, lift the shaft out.
5. Carefully lift up on the card guide to remove it and the bias spring.
To Next Page
