CP80 and CP80 Plus Service Manual 6-71
Upper Duplex Module
This is a prerequisite procedure for many other procedures.
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (page 6-15).

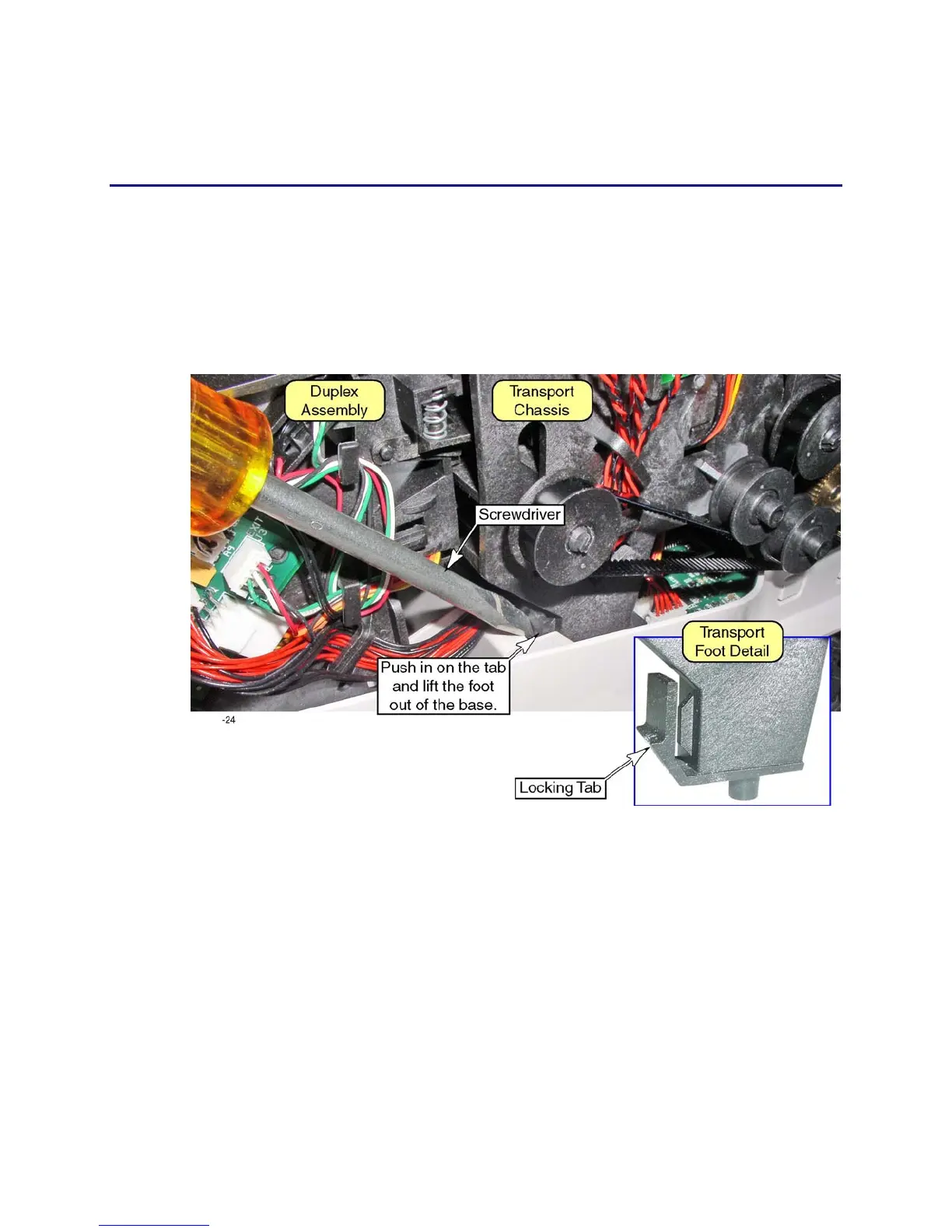

4. Press in on the transport chassis locking tabs, and lift up on the back of the
transport assembly.
To Next Page
