CP80 and CP80 Plus Service Manual 6-113
Card Exit Sensor
The card exit sensor is located just behind the debow roller at the front of the
chassis.

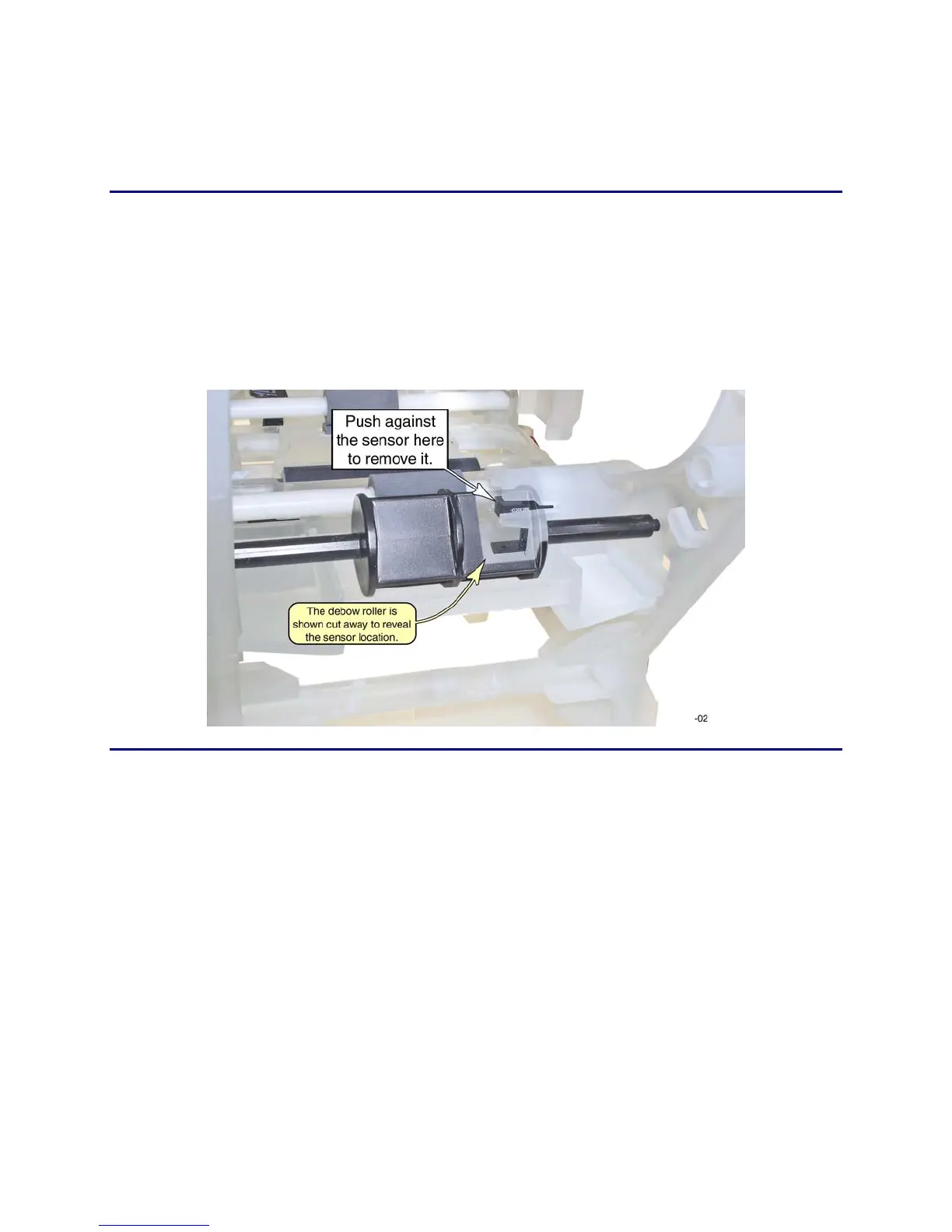

Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the
Main Enclosure (page 6-15).
3. Remove the
Upper Printer Assembly (page 6-38).
4. Disconnect the sensor cable from the laminator control board.
5. Gently push against the tip of the sensor to free it from the chassis.
Replacement Notes
• When pushing the sensor back into position, use a blunt tool and push only on
the top tab, bottom tab, or the center of the body. Do not push against the wire
entry points or crush the wires.
• Make sure the sensor is fully seated. The tip of the sensor should be flush with
the edge of the chassis.
• Refer to the Laminator Front Wire Routing Diagram and Laminator Cable
Connection Diagram for replacement details.
• Print several laminate test cards to verify that the sensor is functional.
