CP80 and CP80 Plus Service Manual 6-105
Upper Platen Roller
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the
Main Enclosure (page 6-15) and the Upper Printer Assembly
(page
6-38).
3. Remove the
Upper Foil Drive Assembly (page 6-126).
4. Remove the
Upper Heater Assembly (page 6-124) from the laminator.

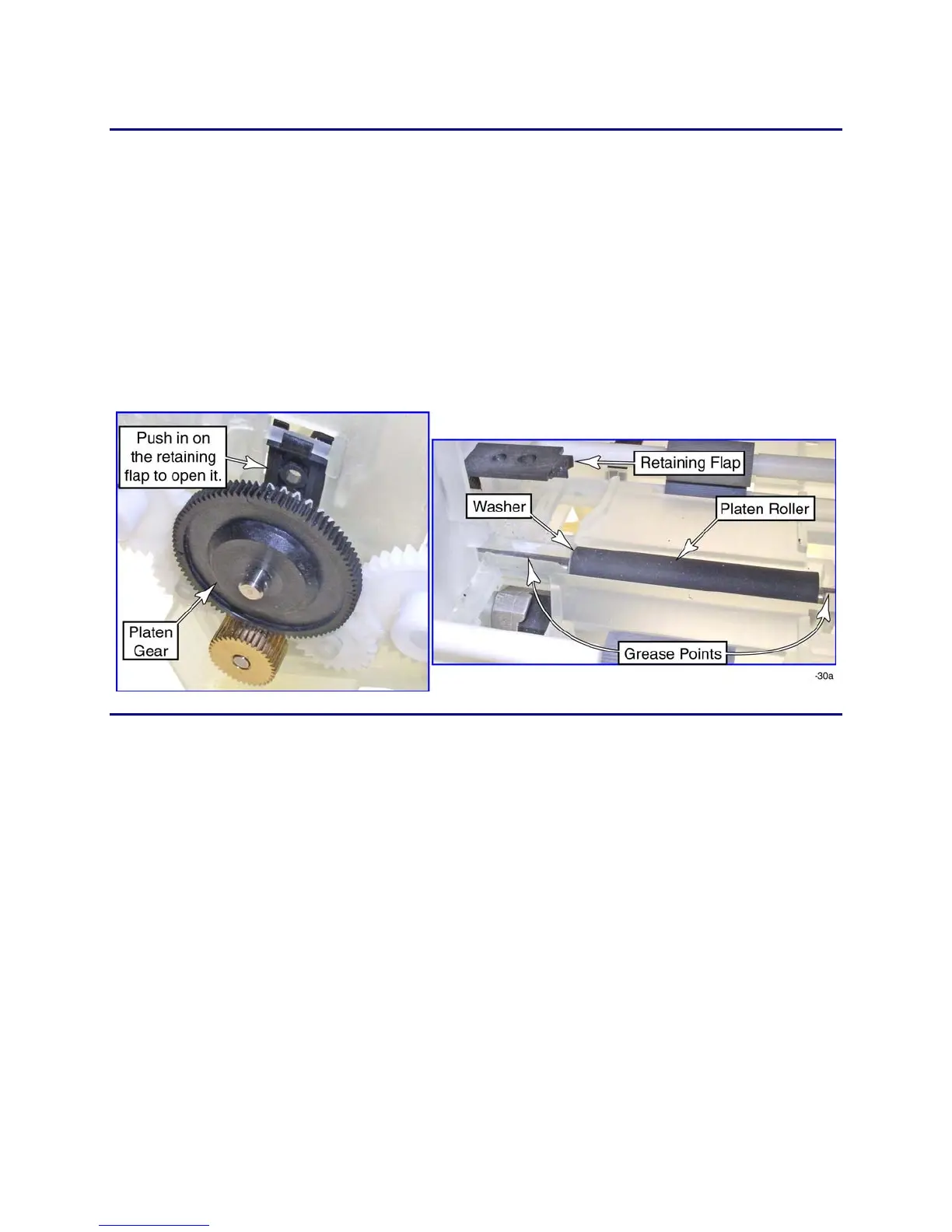

5. Remove the upper platen roller:
A. Open the retaining flap above the platen roller.
B. Lift the gear-end of the platen roller, and pull it out the side of the chassis.
Replacement Notes
• If reusing the roller, clean the rubber with isopropanol and wipe off the original
grease from the shaft.
• Make sure the washer is between the platen roller and the transport chassis.
• Put a thin film of Molykote
®
DX grease (Part No. 807421-001) on the shaft at the
locations shown.
• Print several test cards to check print quality.
