CP80 and CP80 Plus Service Manual 6-99
Upper Laminator Transport Rollers
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the
Main Enclosure (page 6-15) and the Upper Printer Assembly
(page
6-38).
3. Remove the
Upper Foil Drive Assembly (page 6-126).
4. Optional: For easier access, remove the
Upper Heater Assembly (page 6-124)
from the laminator.

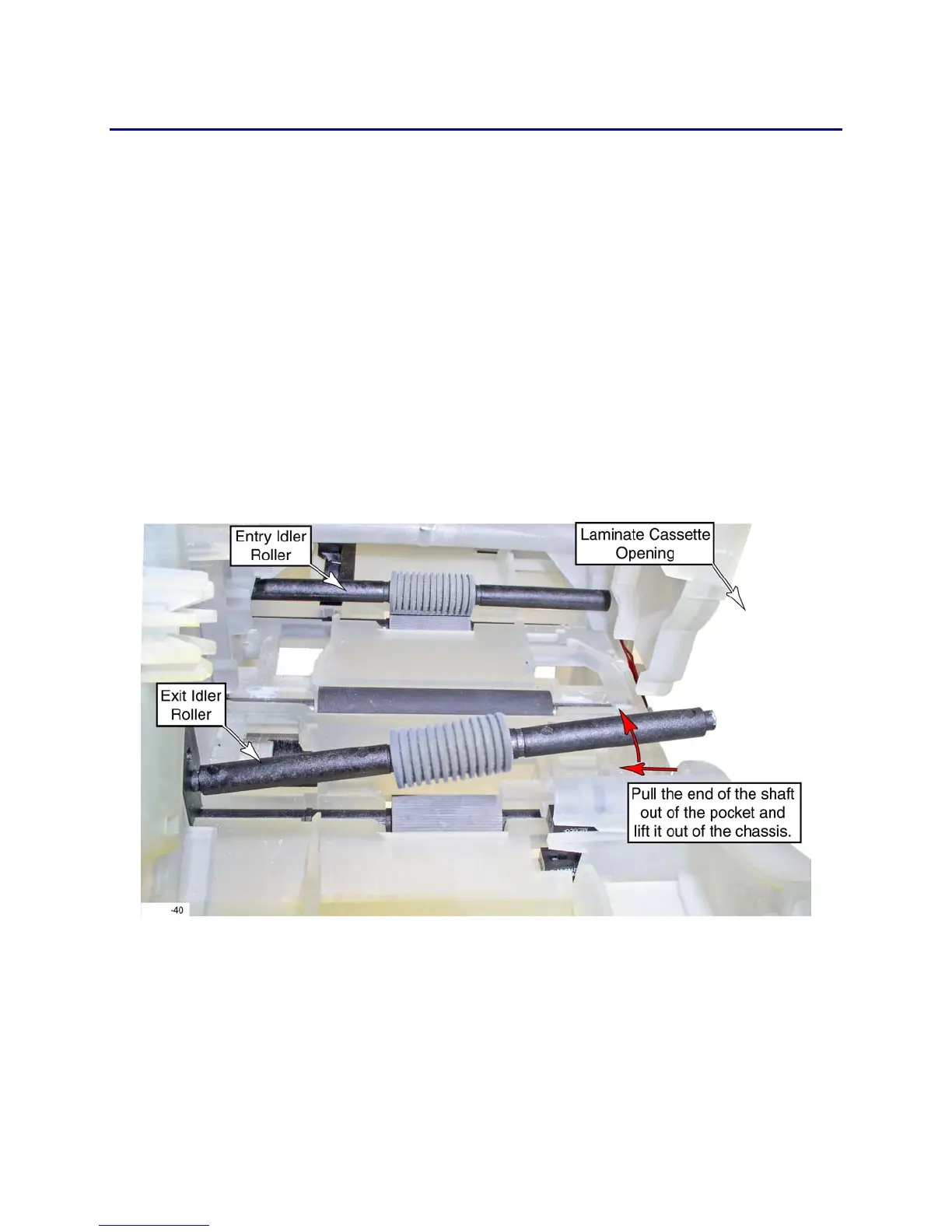

5. Remove the laminator entry and exit idler rollers:
A. Simultaneously pull the shaft to the left and the chassis wall toward the
right (as viewed in the photograph).
B. When the tip of the shaft clears the pocket in the chassis, lift the shaft out.
 Be careful not to pull so hard on the chassis wall that you break the
chassis.
