CP80 and CP80 Plus Service Manual 6-67
Front Card Guide
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Ribbon Guide (page 6-53).
4. Remove the
Front Rocker Assembly (page 6-51).
5. Remove the front card guide:

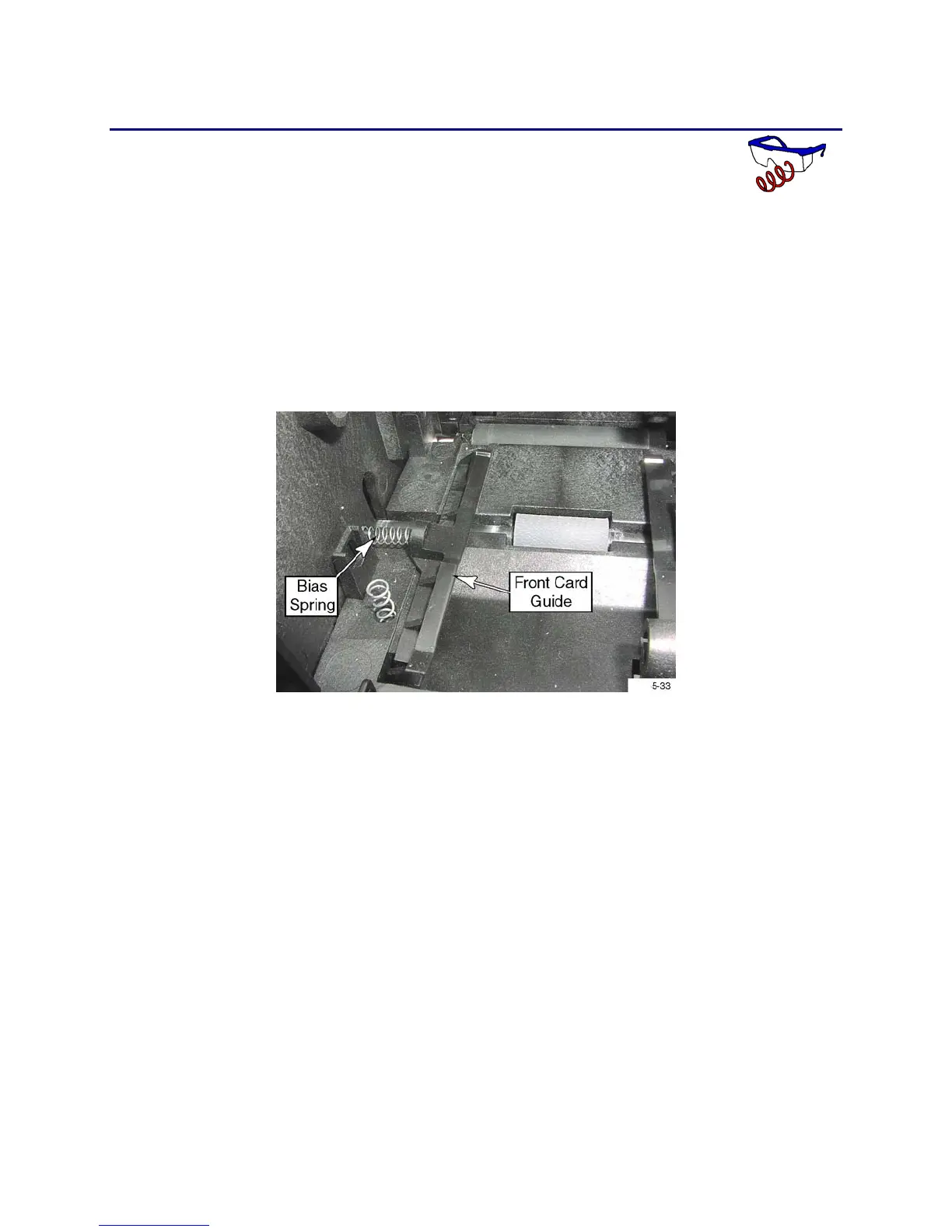

A. Remove the bias spring from the card guide. This will reduce the chance
of the spring flying loose when the guide is removed.
B. Pull up on the card guide.
