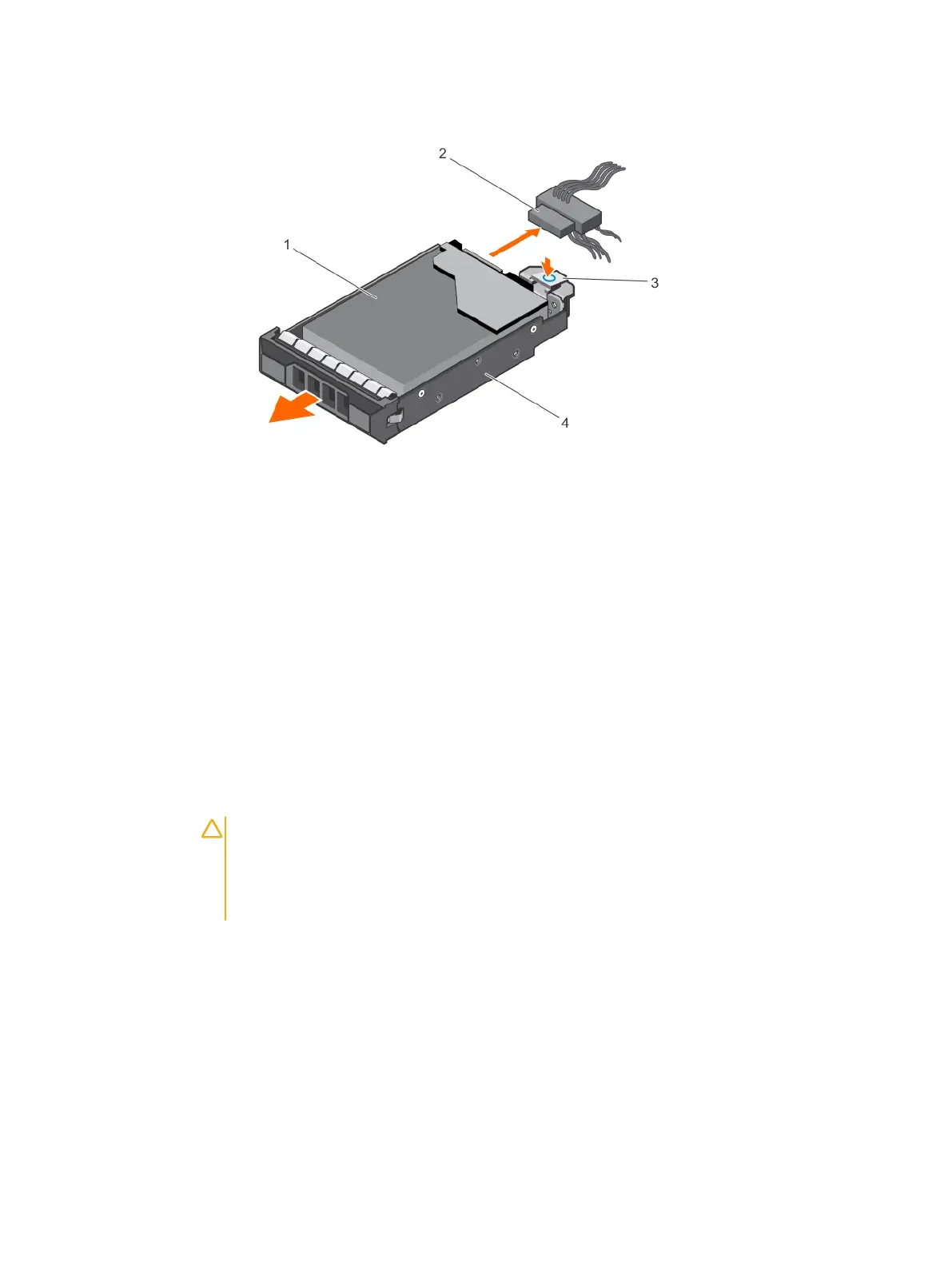

Figure 32 Removing a cabled hard drive carrier
a. hard drive
b. power/data cable
c. release tab
d. hard drive carrier
After you finish
1. If required, install a hard drive in the hard drive carrier and install the hard drive carrier into the
hard drive slot in the system.
2. If you are not replacing the hard drive immediately, insert a hard drive carrier in the empty hard
drive slot.
3. Follow the procedure listed in the After working inside your system section.
Installing a 3.5-inch cabled hard drive carrier
Before you begin
CAUTION
Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
1. Follow the safety guidelines listed in the Safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
3. Keep the Phillips #2 screwdriver ready.
Procedure
1. Press the release tab on the hard drive carrier and slide the hard drive carrier out of the
system.
2. Install the hard drive into the hard drive carrier.
a. Secure the hard drive in place with screws.
3. Insert the hard drive carrier into the hard drive slot, and push the hard drive carrier until it
clicks into place.
Installing and removing system components
Dell PowerEdge R430 Owner's Manual 109
