2. Align the edge connectors on the TPM with the slot on the TPM connector.
3. Insert the TPM into the TPM connector such that the plastic rivet aligns with the slot on the
system board.
4. Press the plastic rivet until the rivet snaps into place.

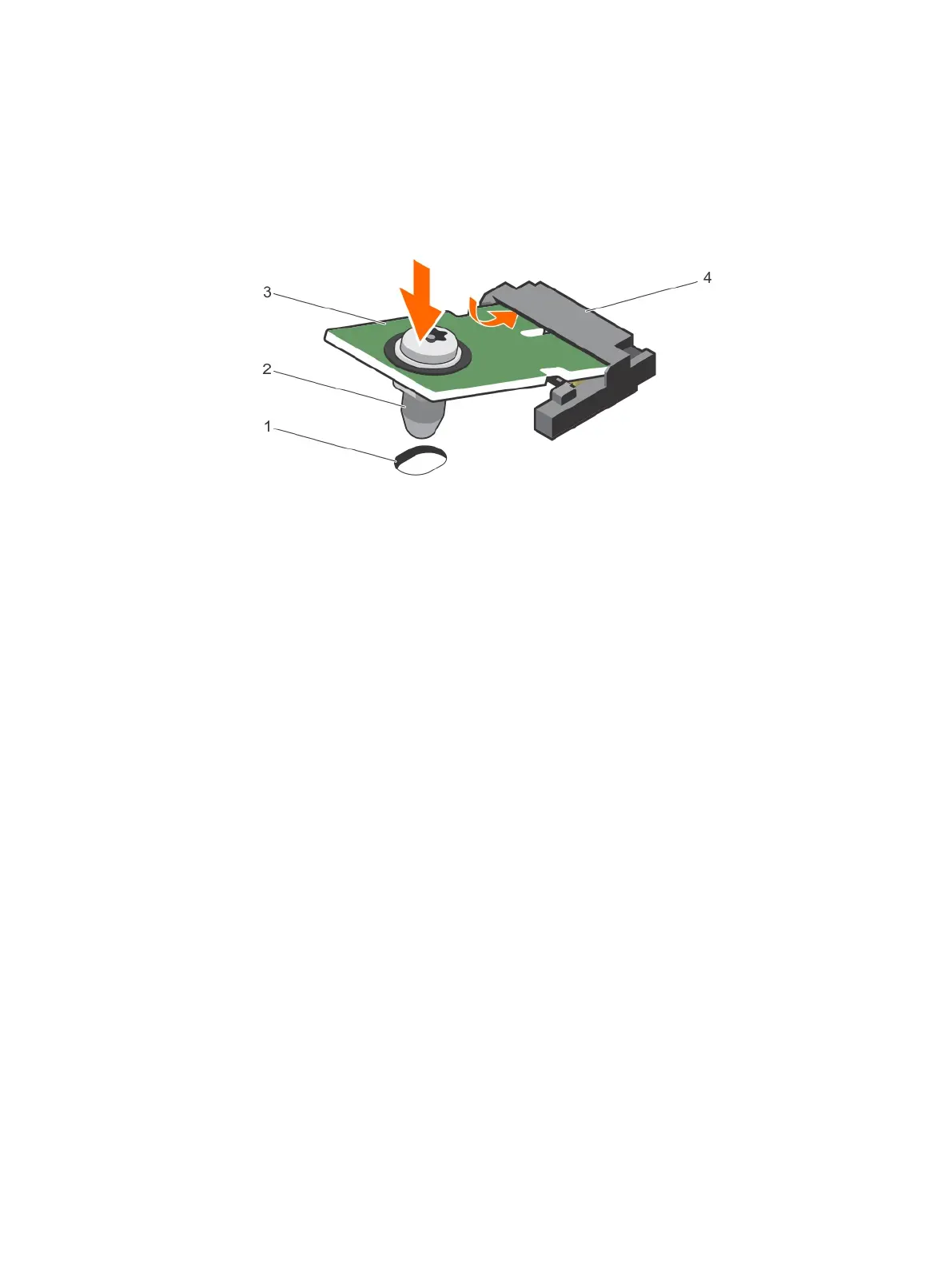

Figure 103 Installing the TPM
a. rivet slot on the system board
b. plastic rivet
c. TPM
d. TPM connector
After you finish
1. Install the system board.
2. Follow the procedure listed in the After working inside your system section.
Initializing the TPM for BitLocker users
Procedure
1. Initialize the TPM.
For more information about initializing the TPM, see http://technet.microsoft.com/en-us/
library/cc753140.aspx.
The TPM Status changes to Enabled, Activated.
Initializing the TPM for TXT users
Procedure
1. While booting your system, press F2 to enter System Setup.
2. On the System Setup Main Menu screen, click System BIOS → System Security
Settings.
3. From the TPM Security option, select On with Pre-boot Measurements.
4. From the TPM Command option, select Activate.
5. Save the settings.
6. Restart your system.
7. Enter System Setup again.
Installing and removing system components
Dell PowerEdge R430 Owner's Manual 189
