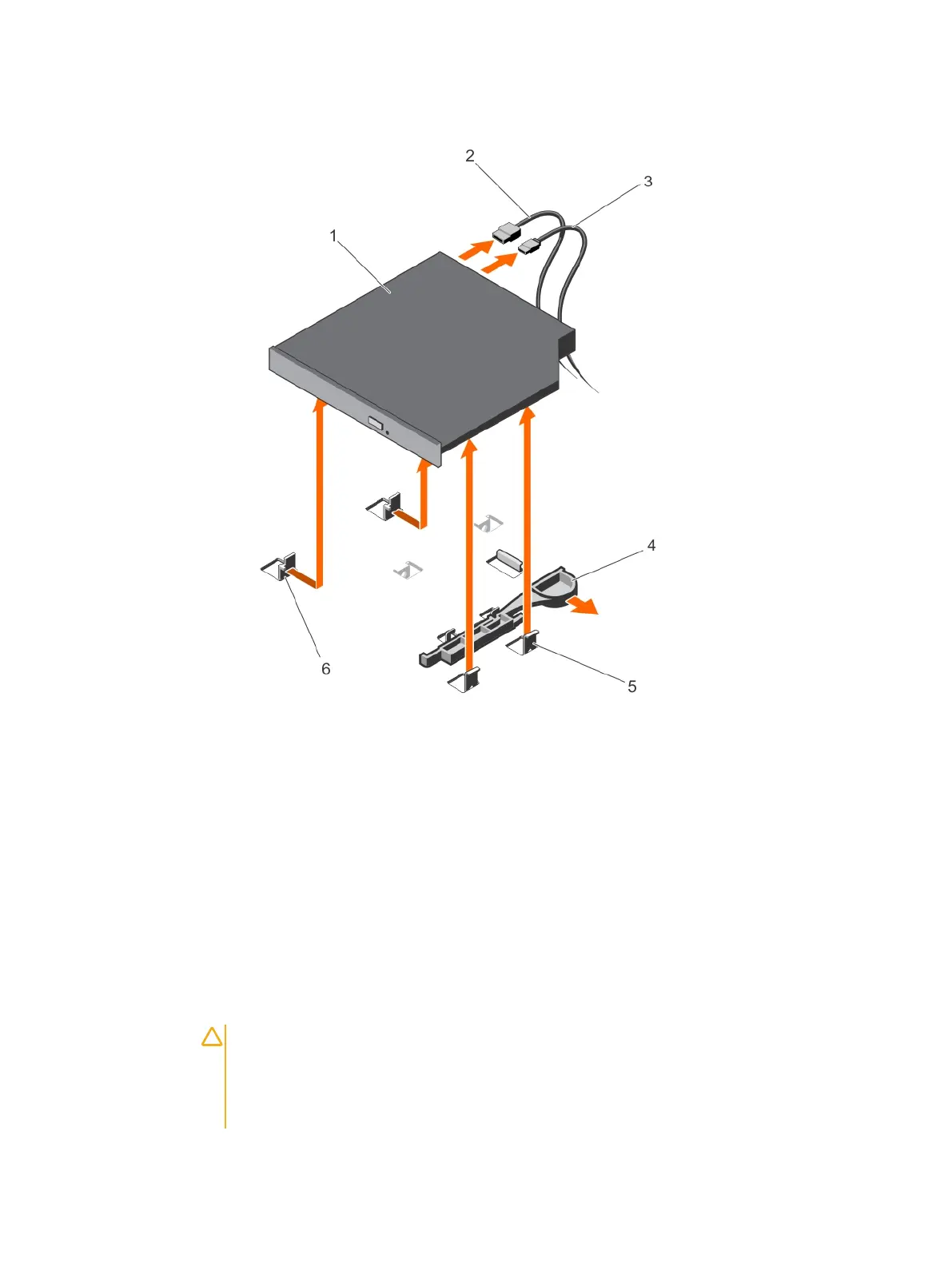

Figure 44 Removing the standard optical drive
a. optical drive
b. data cable
c. power cable
d. release latch
e. metal standoff (4)
f. notch on the metal standoff (2)
After you finish
Follow the procedure listed in the After working inside your system section.
Installing the standard optical drive
Before you begin
CAUTION
Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
1. Follow the safety guidelines listed in the Safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
Installing and removing system components
Dell PowerEdge R430 Owner's Manual 121
