Table 1 Front panel features of a 4 x 3.5-inch hard drive system (continued)
Item Indicator, Button, or
Connector
Icon Description
For information about the supported hard
drives, see the Technical specifications
section.
11 Optical drive
(optional)
One optional slim SATA DVD-ROM drive or
DVD+/-RW drive.
For information about the supported optical
drive, see the Technical specifications section.
Front panel features of the 4 x 3.5-inch cabled hard drive system

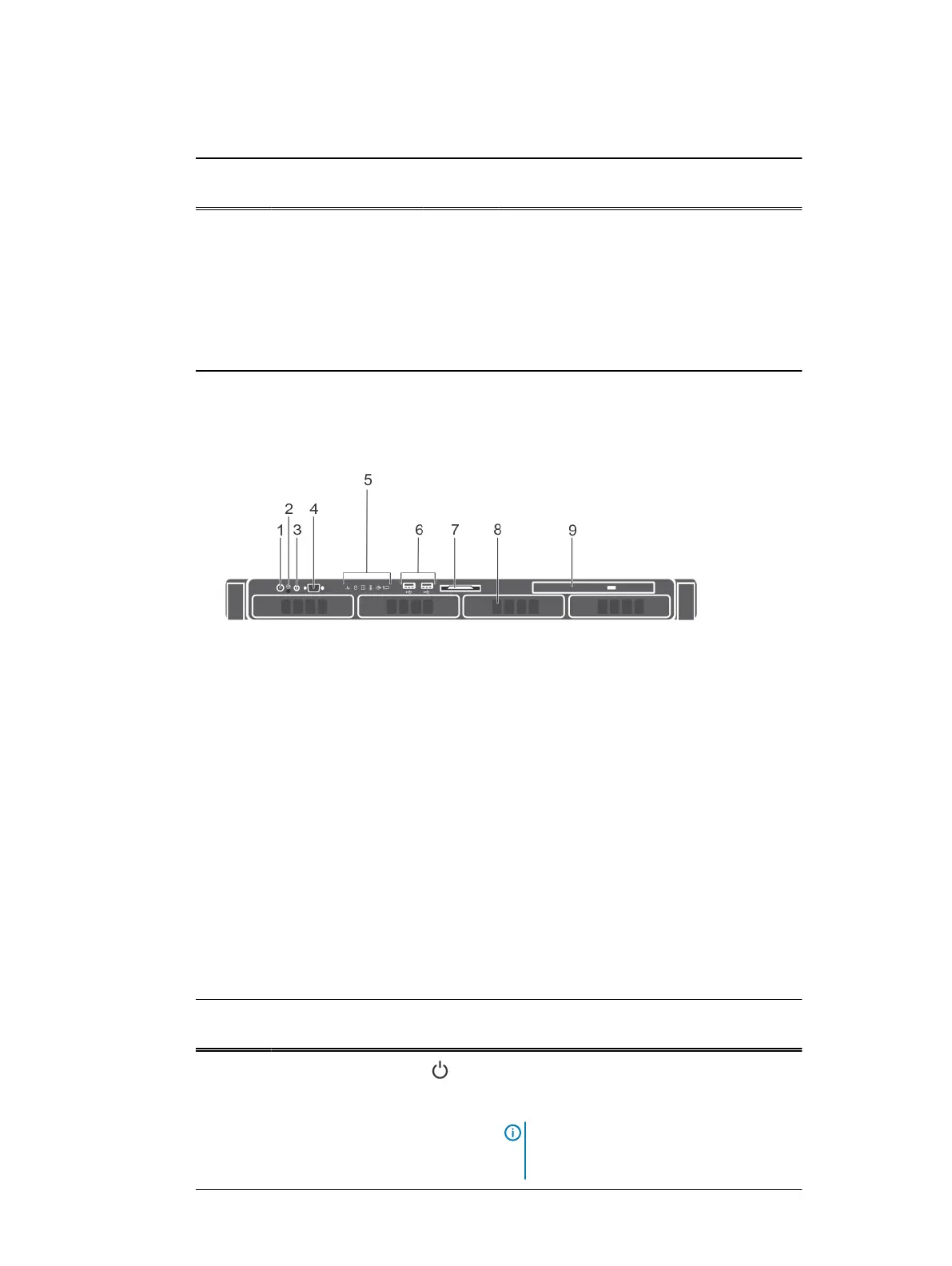

Figure 3 Front panel features of the 4 x 3.5 inch cabled hard drive system
1. Power button
2. NMI button
3. System identification button
4. Video connector
5. Diagnostic indicators
6. USB port (2)
7. Information tag
8. Hard drives
9. Optical drive
Front panel features of the 4 x 3.5 inch cabled hard drive system
Table 2
Front panel features of the 4 x 3.5-inch cabled hard drive system
Item Indicator, Button, or
Connector
Icon Description
1 Power button Press the power button to turn the system on
or off. The indicator on the button indicates if
the system is on or off.
Note: To gracefully shut down an ACPI-
compliant operating system, press the
power button.
Dell PowerEdge R430 system overview
Dell PowerEdge R430 Owner's Manual 13
